Voltcraft Component Test Preset I-V Curve for Oscilloscopes

CAT I
Ratings
Delivered between Tue, 20.5. and Wed, 21.5.
More than 10 items in stock at third-party supplier
Supplied by
Conrad CH

Product details

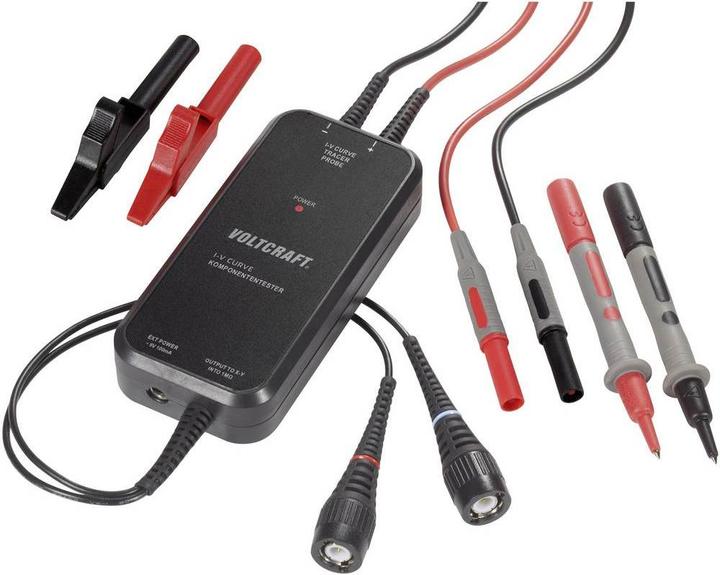

The I-V Curve is a component test probe for 2-channel oscilloscopes with X-Y operation function. In X-Y operation, two-pole components such as semiconductors, capacitors, resistors, RLC networks and the combination of RLC with semiconductors can be checked for their condition. Even the testing of built-in components is possible. The characteristic curve is displayed on the oscilloscope screen in a two-dimensional I-V diagram. Here, the relationship between electrical current (I) and electrical voltage (U) of a two-pole electrical component is shown.

Key specifications

Item number
8486818

General information

Manufacturer
Voltcraft
Category
Multimeter
Manufacturer no.
I-V CURVE
Release date
21.4.2018
External links
Manufacturer's site (de)

Multimeter Features

Calibrated according to
Factory standard (without certificate)

Metrology

measurement category
CAT I

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
2 crocodile clips - 2 test probes - power supply unit - bag - operating instructions

Product dimensions

Length
2.40 cm
Width
5.50 cm
Height
12 cm
Weight
0.30 kg

Package dimensions

Length
26 cm
Width
13 cm
Height
6 cm
Weight
1.06 kg

30-day right of return
24 Months Warranty (Bring-in)
