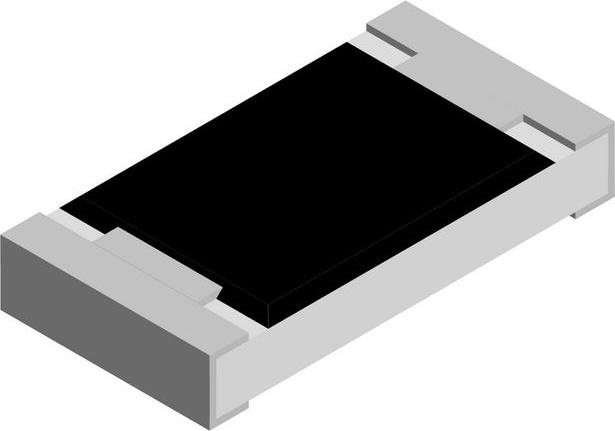

Vishay Pulse-resistant thick-film high-power resistor 1MOhm ±1% 0402
Minimum order 3Delivered between Thu, 10.7. and Thu, 24.7.
More than 10 items in stock at third-party supplier
More than 10 items in stock at third-party supplier
Supplied by
Distrelec CH
Free shipping starting at 50.–
Product details
Pulse-resistant thick-film high-power resistor, type=CRCW04021M00FKEDHP, operating temperature, max.=155 °C, operating temperature, min.=-55 °C, housing width=0.5 mm, housing height=0.3 mm, unit length=1 mm, rated power=200 mW, rated voltage (DC)=50 V, tolerance (±)=1 %, resistance=1 MΩ, connection type=wraparound, mounting type=SMT, qualification=AEC-Q200, resistor type=thick film, temperature coefficient=±100 ppm/K, resistor package style=0402.
Nominal power | 0.20 W |
permissiveness | 1 ± % |
Item number | 47744013 |
Manufacturer | Vishay |
Category | Resistor |
Manufacturer no. | CRCW04021M00FKEDHP |
Release date | 11.8.2024 |
Minimum order | 3 |
Minimum order | 3 |
Resistor | 1 Ω (ohm) |
Nominal power | 0.20 W |
permissiveness | 1 ± % |
CO₂-Emission | |
Climate contribution |
Height | 0 m |
Width | 0 m |
Length | 0 m |
Specifications may include unverified machine translations.
