Product details
Nominal power: 300 mW
Impedance: 8 Ω
Frequency type: Midrange
Diameter: 23 mm
Mounting type: Round
Speaker size: up to 8 cm / 3 inches
Cone/dome size: 23 mm
Cone/dome width: 1.6 mm

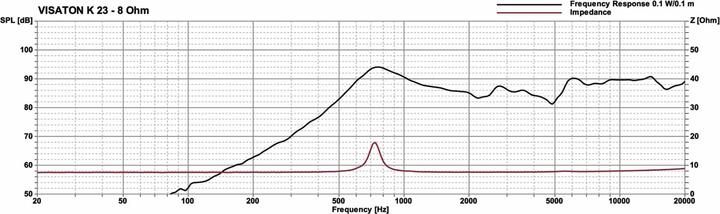

Frequency response: 420 Hz to 20 kHz
Length: 23 mm
Width: 23 mm
Depth: 5 mm
Weight: 4 g

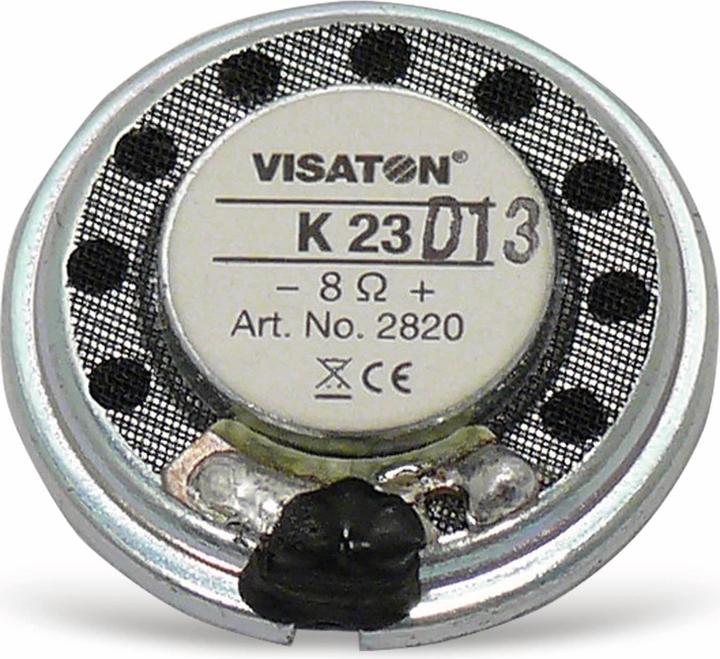

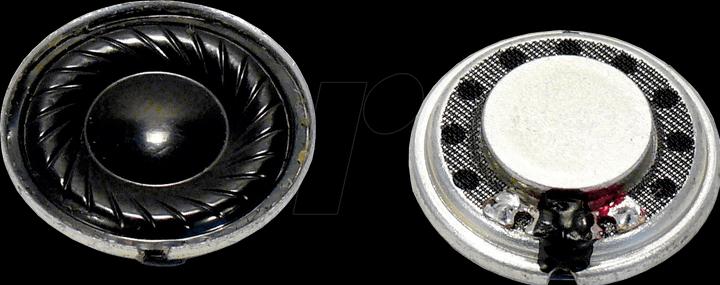

Miniature speaker Visaton K23, 23 mm, Ø 2.3 cm, 8 Ohm. The 23 mm miniature speakers were designed for signal output in devices with limited space. Mylar diaphragm, round metal basket, solder points on the back for connection.
Item number | 9809071 |
Manufacturer | Visaton |
Category | Speaker components |
Manufacturer no. | 2820 |
Release date | 28.9.2018 |
External links |
Material group | Plastic |
Material | Plastic membrane |
Component type | Mini loudspeaker chassis |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Weight | 0 kg |
