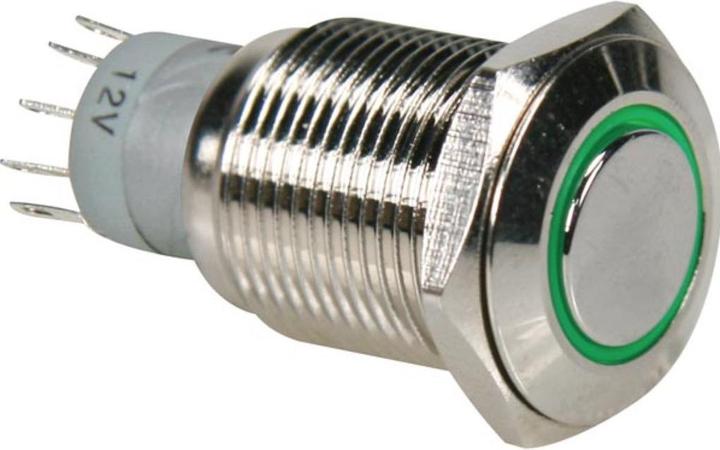

Velleman Round Metal Switch Spdt 1No 1Nc Green Ring
Delivered between Wed, 1.10. and Fri, 3.10.
More than 10 pieces in stock at supplier
More than 10 pieces in stock at supplier
Free shipping starting at 50.–
Product details
Features and Benefits
Illumination by 12V LED
Service life: over 40,000 hours
Technical Data
SPDT 1NO 1NC
Colour: green
Type: On-Off
Operating temperature: -20°C to +70°C
Humidity: 45 to 85% RH
Insulation resistance: over 1000 M Ohm
Contact resistance: less than 50 m Ohm
Material of contacts: silver plated
Mechanical life: 1,000,000 cycles
Electrical life: 50,000 cycles
Dielectric strength:
- Between terminals of one pole: 1000 VAC
- Between terminals of different poles: 2000 VAC
- Between lamp and lamp terminal: 1500 VAC
- Between the connections of one pole: 1000 VAC
- Between the connections of different poles: 2000 VAC
- Between lamp and lamp connection: 1500 VAC
Material housing: nickel-plated brass
IP protection class: IP40/IP65
Max. voltage: 24 VDC / 1 A, 230 VAC / 0.5 A
Bore: Ø16 mm.
Colour | Green |
Item number | 5842645 |
Manufacturer | Velleman |
Category | Buttons + Switches |
Manufacturer no. | R1610G |
Release date | 12.7.2016 |
Colour | Green |
Exact colour description | Green, Nickel |
Material group | Metal |
Material | Brass, Nickel plated |
LED colour | Green |
Number of poles | 5 x |
Nominal voltage | 24 V |
Nominal current | 1 A |
Protection type (IP code) | IP40, IP65 |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 Piece |
Length | 3.80 cm |
Width | 2 cm |
Height | 2 cm |
Weight | 15 g |
Specifications may include unverified machine translations.
