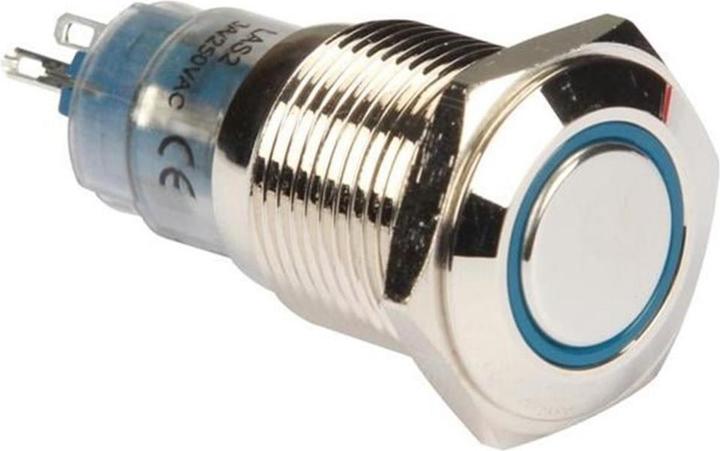

Velleman Round Metal Push Button Spdt 1No 1Nc Blue Ring
Delivered between Tue, 7.4. and Wed, 8.4.
More than 10 pieces in stock at supplier
More than 10 pieces in stock at supplier
Free shipping starting at 50.–
Colour5
Product details
Features: Lighting by 12V LED, lifespan: over 40,000 hours. Technical specifications: DPST 1NO 1NC, color: blue, type: on-off, operating temperature: -20°C to +70°C, humidity: 45 to 85% RH, insulation resistance: over 1000M Ohm, contact resistance: under 50m Ohm, contact material: silver-plated, mechanical lifespan: 1,000,000 cycles, electrical lifespan: 50,000 cycles, breakdown voltage: between terminals of one pole: 1000VAC, between terminals of different poles: 2000VAC, between lamp and lamp connection: 1500VAC. Housing material: nickel-plated brass, IP protection class: IP40/IP65, max. voltage: 24VDC / 1A, 230VAC / 0.5A. Hole size: Ø16mm.
Colour | Blue |
Width | 40 mm |
Diameter | 16 mm |
Item number | 5842637 |
Manufacturer | Velleman |
Category | Buttons + Switches |
Manufacturer no. | R1600B |
Release date | 5.4.2022 |
Colour | Blue |
Exact colour description | Blue |
Material group | Metal |
Material | Brass, Nickel plated |
LED colour | Blue |
Number of poles | 1x |
Nominal voltage | 24 V |
Nominal current | 0.50 A |
Protection type (IP code) | IP40 |
Country of origin | Germany |
CO₂ emissions | 5.26 kg |
Climate contribution | CHF 0.13 |
Smart home | Not compatible |
Items per sales unit | 1 pcs. |
Scope of delivery | Set: No |
Length | 50 mm |
Width | 40 mm |
Height | 40 mm |
Diameter | 16 mm |
Length | 5 cm |
Width | 1 cm |
Height | 1 cm |
Weight | 14 g |
Specifications may include unverified machine translations.
