Velleman Measuring device ESR

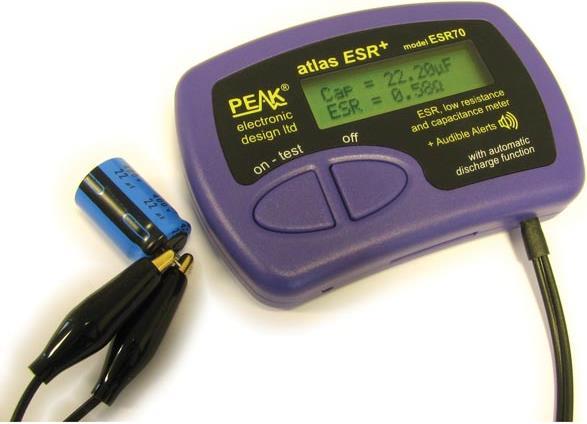

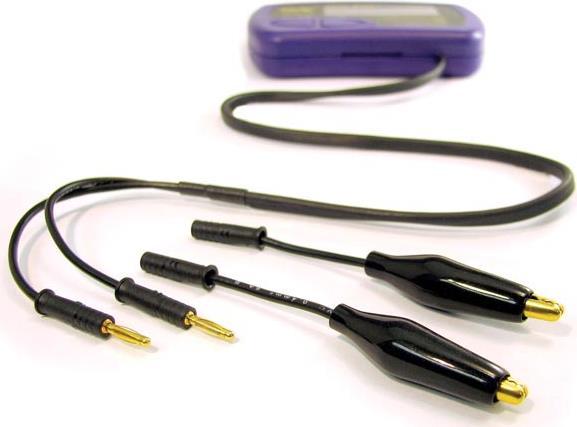

Velleman ESR70 measuring device for ESR, low resistance and capacitance,
Properties

ESR measuring range : from 0 to 20 Ohm
low ESR resolution: 0.01 Ohm
Capacitance range: 1µF...22mF (22.000µF)
is also suitable for measuring low resistances
the built-in discharge circuit ensures that a charged capacitor does not damage the device
with the integrated controlled discharge circuit the user has to discharge the capacitors manually before the test
for use inside or outside the circuit for ESR and low ohmic resistance measurements
automatic and manual switch-off
with audible alerts

Technical data

Specification Summary at 20°C (68°F) unless otherwise specified
Test current peak value in short circuit (Isc): ±20mA ~ ±25mA
Test voltage peak in open circuit (Voc): ±2.5V ~ ±3.0V
Capacitance range: 1µF ~ 22,000µF
accuracy: ±4%±0.2µF
ESR (replacement series resistor):
measurement range: 0 Ohm ~ 20 Ohm
resolution (ESR2 Ohm): 0.1 Ohm ~ 0.2Ohm
accuracy (ESR2<2 Ohm): ±1.5% ±0.02 Ohm
accuracy (ESR> Ohm): ±1.5% ±0.2O
max. external voltage: C10µF<2 Ohm): ±1.5% ±0.02 Ohm
accuracy (ESR><10µF ±275V; C> ±50V
Voltage limit for automatic discharge: ±50V
Battery:
Type: MN21/GP23A 12V alkaline
voltage range: 8.5V ~ 12V
Battery voltage warning threshold: 8.5V
automatic switch off : 30s
Dimensions: 103x70x20mm (4.1" x 2.8" x 0.8")
Operating temperature: 10°C ~ 40°C (50F ~ 104F)
Weight per product (net): 0.098kg (3.5oz)
