PROGRAMMABLE LABORATORY POWER SUPPLY 0-30V DC / 5A MAX. LED DISPLAYS WITH USB 2.0 INTERFACE
Features & Benefits
LED display for voltage and current
Protection mode: Current limitation
Memory: 5 programmable
Features & Benefits
LED display for voltage and current
Protection mode: Current limitation
Memory: 5 programmable
memories
Colour: white-grey
only suitable for indoor use
Pollution degree II

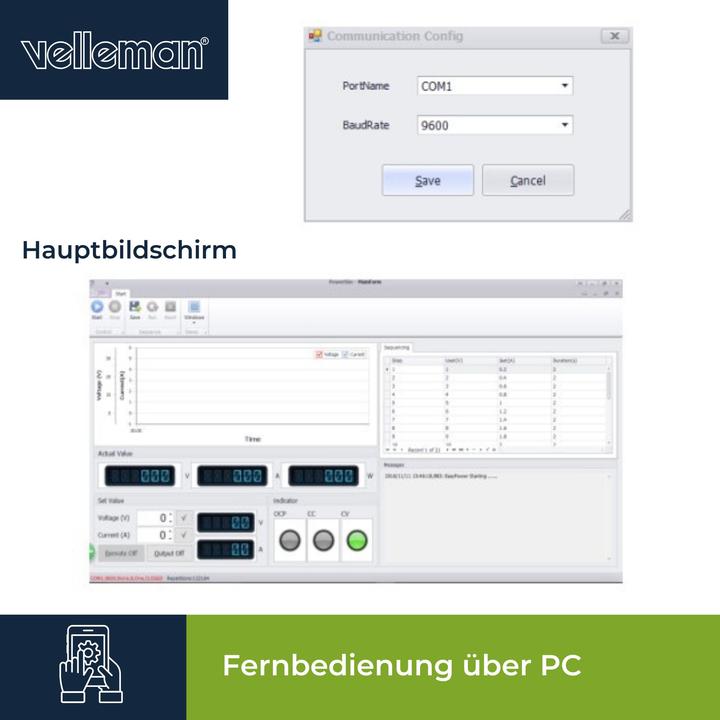

Connection: PC remote control via USB
Delivery with software V 1.05 for: Windows® XP, Vista, W7, W8, W8.1, W10 (32 bits + 64 bits)
protected by fuse
Technical data
Input voltage: 230 VAC 50 Hz 1.5 A 345W pf: 0.8
Output voltage: 0-30 VDC max. adjustable
Output current: 0-5 A max. adjustable
Residual ripple: =/< 1 mV
Rippelstrom: 3 mA
Sicherung: 2 A / 250 V
max. relative Feuchte:
Colour: white-grey
only suitable for indoor use
Pollution degree II
Connection: PC remote control via USB
Delivery with software V 1.05 for: Windows® XP, Vista, W7, W8, W8.1, W10 (32 bits + 64 bits)
protected by fuse
Technical data
Input voltage: 230 VAC 50 Hz 1.5 A 345W pf: 0.8
Output voltage: 0-30 VDC max. adjustable
Output current: 0-5 A max. adjustable
Residual ripple: =/< 1 mV
Rippelstrom: 3 mA
Sicherung: 2 A / 250 V
max. relative Feuchte:
| Output voltage | 30 V |
| Power | 150 W |
| Electric current output | 5 A |
| Item number | 7764752 |
| Manufacturer | |
| Category | |
| Manufacturer no. | LABPS3005DN |
| Release date | 4/29/2022 |
| External links |
| Colour group | Grey |
| Display | Digital |
| Output voltage | 30 V |
| Electric current output | 5 A |
| ripple | 1 mW |
| Power | 150 W |
| Power supply | Electrical connection |
| Scope of delivery | Display, USB port |
| Length | 240 mm |
| Width | 115 mm |
| Height | 190 mm |
| Weight | 5300 g |
| Length | 30 cm |
| Width | 25.50 cm |
| Height | 21.50 cm |
| Weight | 5.69 kg |
Specifications may include unverified machine translations.
