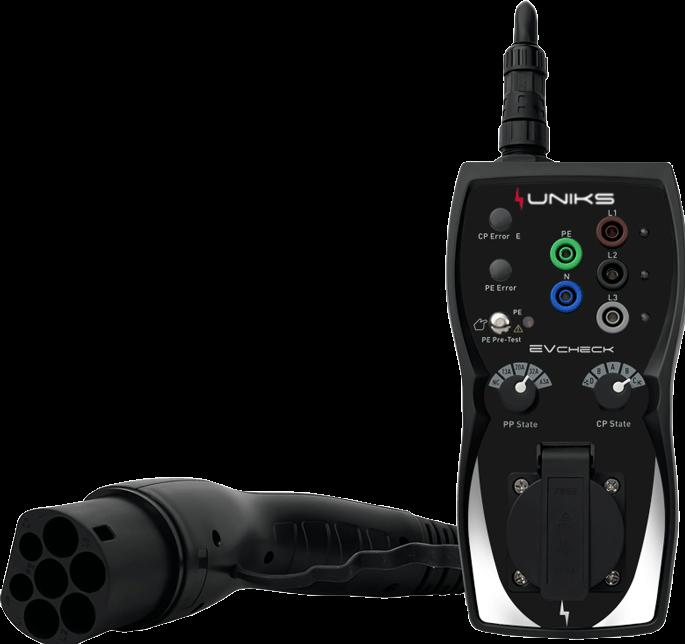

Uniks Test adapter set for measurement at charging stations for electric vehicles

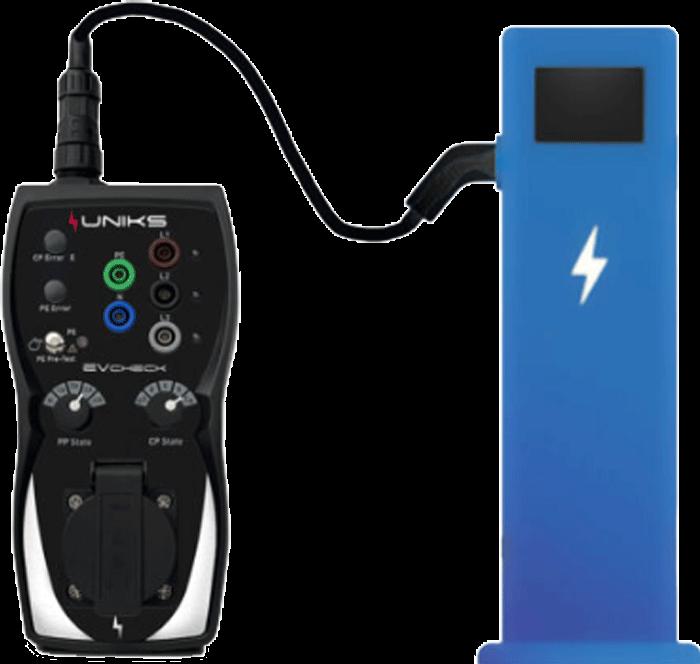

Tester for charging stations for electric vehicles. The UNIKS EV CHECK simulates the presence of an electric vehicle connected to the charging station, allowing you to check the functionality and electrical safety of the station.

Technical specifications:

• Measurement of EVSE voltage, RCD test Type EV and B
• Measurement of line impedance, fault loop impedance, insulation test
• Charging station test (1 step), single-phase test via the socket, charging station test (3 steps)

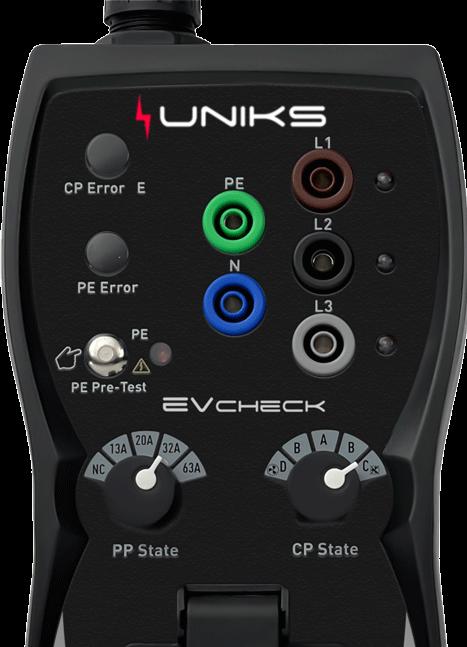

• Selector switch for proximity pilot resistance to simulate the presence of the EV cable and detect current evaluation
• Selector switch for control pilot resistance to simulate the state of the electric vehicle
• T13 socket output for connection to a single-phase installation tester (Phase 1, Neutral, PE)
• Input voltage up to 250 V (single-phase system) / up to 430 V (three-phase system), 50/60 Hz, max. 10 A
• AC charging mode 3
• Suitable for IEC62196-2 Type 2 plug or fixed cable with vehicle connector (Type 2, 7P three-phase)
• Measurement category 300V CAT II, protection class II, max. height 2000 m, IP54, T 0...40 °C, rH 10...85 %, IEC / EN 62851-1 / IEC / HD 60364-7-722

Delivered with:
+ Test cable Type 2
+ Case.
