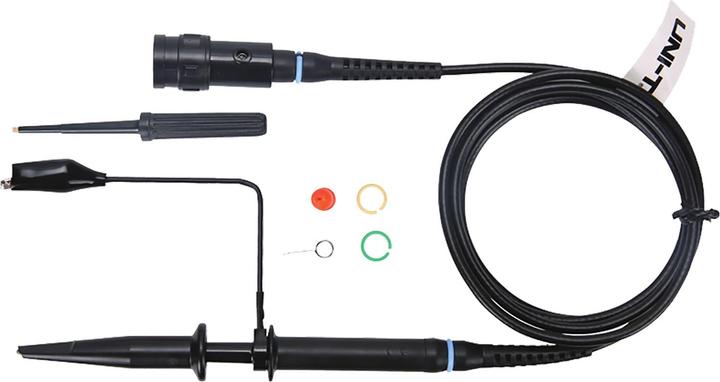

Uni-T Oscilloscope probe 1:1/10:1 up to 100 MHz UT-P04

The UT-P04 oscilloscope probe is a passive measuring instrument designed for use with various oscilloscopes, including models from UNI-T, Rigol, and Atten. With a bandwidth of up to 100 MHz, this probe allows for precise measurements across a wide range of applications. It offers two attenuation ratios of 1:1 and 1:10, providing flexible adaptation to different measurement requirements. The input impedance is 1 MOhm at 1:1 attenuation and 10 MOhm at 1:10 attenuation, ensuring high accuracy and reliability in signal transmission. The probe is equipped with a straight BNC connector and can handle operating voltages of up to 300 Vpp at 1:1 attenuation and 600 Vpp at 1:10 attenuation. This makes it a versatile tool for professionals and electronics enthusiasts who wish to perform precise electrical measurements.

• Compatible with UNI-T, Rigol, and Atten oscilloscopes
• Bandwidth from 0 to 100 MHz
• Input impedance of 1 MOhm (1:1) and 10 MOhm (1:10)
• Operating voltage up to 600 Vpp (1:10 attenuation)
• Straight BNC connector for easy connection.
