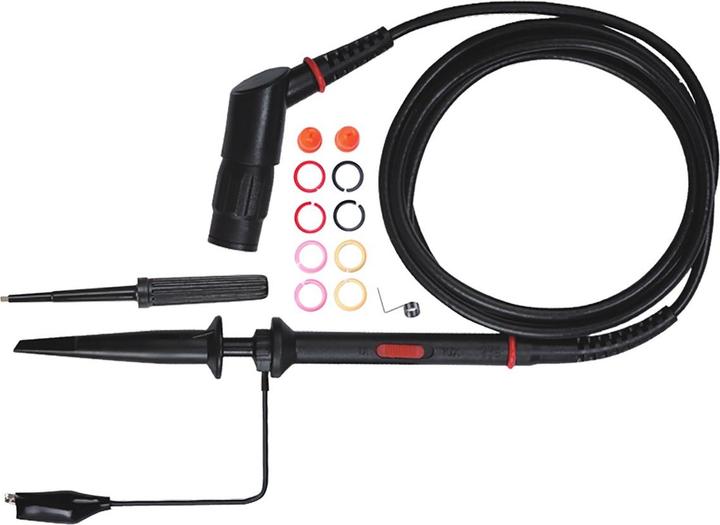

Uni-T 200 MHz oscilloscope probe (BNC right-angle connector) UT-H05

The 200 MHz oscilloscope probe UT-H05 is a precise measuring instrument specifically designed for use with oscilloscopes from the UTD1000 series. With a bandwidth of 0 to 200 MHz, this probe allows for the capture of high-frequency signals and provides reliable performance for various applications in electronics. The probe features a attenuation ratio of 1:1 and 1:10, enabling flexible adaptation to different measurement requirements. The input impedance is 1 MΩ at 1:1 attenuation and 10 MΩ at 1:10 attenuation, ensuring accurate signal transmission. The angled BNC connector facilitates handling and connection to the oscilloscope. With a maximum operating voltage of 300 Vpp at 1:1 attenuation and 600 Vpp at 1:10 attenuation, the UT-H05 is suitable for a wide range of applications. Its compact dimensions of 3.5 cm in length and width, and 26 cm in height make it a practical tool for use in laboratories and troubleshooting electronic circuits.
