Triton RAC-RV-X61-Z6 - Additional panel for mounting the climate unit type X1, X2, horizontally on the distributor

For active temperature regulation of our distributors, we offer climate units from the leading European manufacturer STULZ-Cosmotec under the Triton brand. The compact ETE climate units are designed for cooling components in the RDE and RIE series data distributors (with protection class IP54).

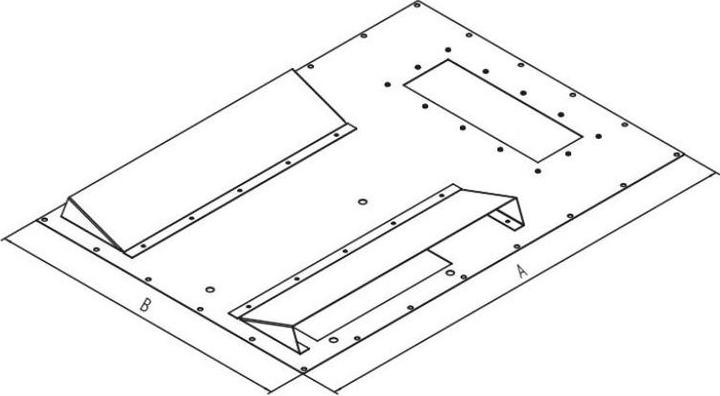

To fully utilize the potential of the climate units by controlling the cooling air according to the needs of the installed components, we provide additional panels for mounting on the RDE and RIE series distributors. These consist of a metal plate that is screwed onto the large opening in the distributor roof, onto which the climate unit is installed. The additional panels are symmetrical, allowing the airflow to be redirected by rotating them. For easy access to the thermostat control panel, it can be mounted in two positions simply by plugging it in.

The 800 mm wide climate unit can only be mounted on 800 mm wide distributors. The 600 mm wide climate unit can be mounted on both 600 mm and 800 mm wide distributors.
Type: RAx-RV-X61-Z6
A (mm) Distributor depth: 1000, 1200

B (mm) Distributor width: 600
Type of climate unit: X1, X2
Mounting direction of the climate unit: Width-wise
Included mounting materials: 30x M5x12, 30x rubber seals.
