Trilux Surface mounted luminaire CDP "fine prismatic" optic incl.LM LED EVG Onplana D07 CDP19 1000-830

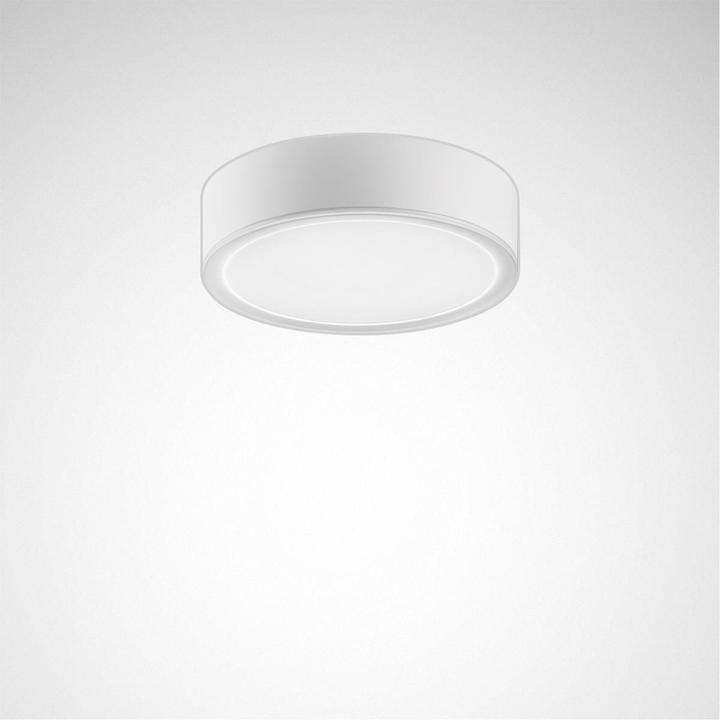

Round LED surface-mounted downlight with a mounting height of 60 mm, suitable for wall and ceiling installation. Equipped with a primary reflector and highly efficient micro-prismatic CDP, it provides a predominantly direct light intensity distribution. Increased lighting comfort is supported by decorative ceiling illumination. The glare rating according to the UGR standard is < 19 with reflection values of 80/60/30. The harmonious light effect is achieved through a uniformly illuminated light exit.

The rated luminous flux is 1100 lm, the rated power is 9.00 W, and the luminous efficacy of the luminaire is 122 lm/W. The light color is warm white with a color temperature (CCT) of 3000 K and a general color rendering index (CRI) of Ra > 80. The average rated lifespan is L80(tq 25 °C) = 70,000 h and L85(tq 25 °C) = 50,000 h. The light source is replaceable according to eco-design requirements.

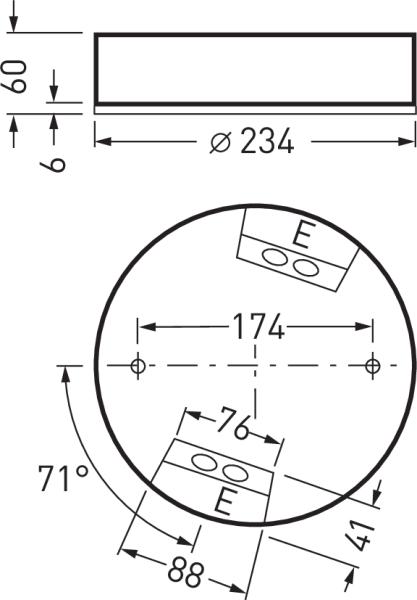

The luminaire body is made of die-cast aluminum and is finished with a white textured paint (RAL 9016). The external dimensions of the ceiling ring are Ø 234 mm, and the luminaire height is 60 mm. The permissible ambient temperature ranges from -20 °C to +25 °C. The protection class (EN 61140) is I, the protection rating (DIN EN 60529) is IP40, and the impact resistance grade according to IEC 62262 is IK06. The test temperature during the glow wire test according to IEC 60695-2-11 is 650 °C.

The weight is 1.7 kg. It is equipped with a terminal block for up to 2.5 mm, strain relief, and network pass-through. The electronic control gear is switchable and also replaceable according to eco-design requirements. The product meets the essential requirements of applicable EU directives and the Product Safety Act and bears the CE marking. Additionally, the luminaire is ENEC-certified by an independent testing body.
