Trilux Olisq LWD3 DW 75-840

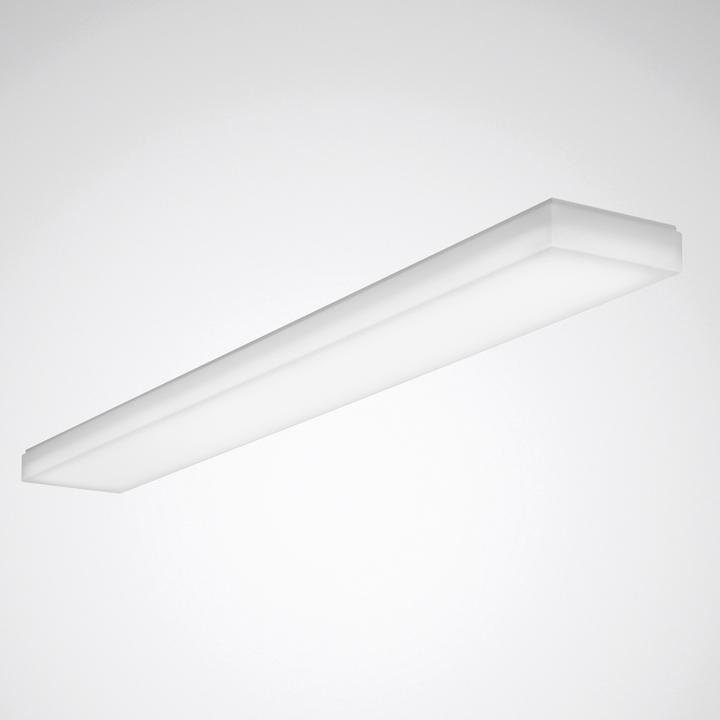

Rectangular, flat surface-mounted luminaire with an opal diffuser made of PMMA. Version with increased protection class IP54 all round. Developed and manufactured in Germany. Suitable for use in HACCP, IFS and/or BRC Global Standard Food certified companies (DIN 10500). With limited surface temperature, suitable for use in rooms at risk of fire in accordance with DIN EN 60598-2-24. For wall or ceiling mounting. The components are arranged in the box in assembly sequence for protection and to facilitate quick assembly. The cover is quickly fitted to the mounting body without tools using a click fastener. The material and structure of the covering diffuser ensure uniform and shadow-free illumination of the easy-to-clean luminaire surface. With diffuse wide beam light distribution, predominantly direct. With a slight indirect component for surface brightening. Rated luminous flux 7500 lm, rated wattage 60.00 W, luminaire luminous efficacy 125 lm/W. Light colour neutral white, most similar colour temperature (CCT) 4000 K, general colour rendering index (CRI) Ra > 80. Average rated service life L80(tq 25 °C) = 100,000 h. The light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Replacement is carried out without tools, the replacement light source can be obtained as a spare part. Luminaire body made of sheet steel. Surface coated white (RAL 9016). Luminaire dimensions (L x W x H): 1578 mm x 198 mm x 68 mm. Insect-proof lamp compartment. Protection class (EN 61140): I, degree of protection (DIN EN 60529): IP54, degree of impact resistance according to IEC 62262: IK02, glow wire test temperature according to IEC 60695-2-11: 650 °C. Weight: 4.6 kg. With electronic control gear, digitally dimmable (DALI). Control gear in accordance with DALI-2 standard (EN 62386). Luminaire can be switched and dimmed using the touch function via DALI control terminals (Touch DIM). The control gear can be replaced in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). The luminaire can be equipped with monitoring ready (MOR) functionality on request. The product fulfils the essential requirements of the applicable EU directives and the Product Safety Act and bears the CE mark.
