Trilux LED pendant light ViaCon HQ- #6996540

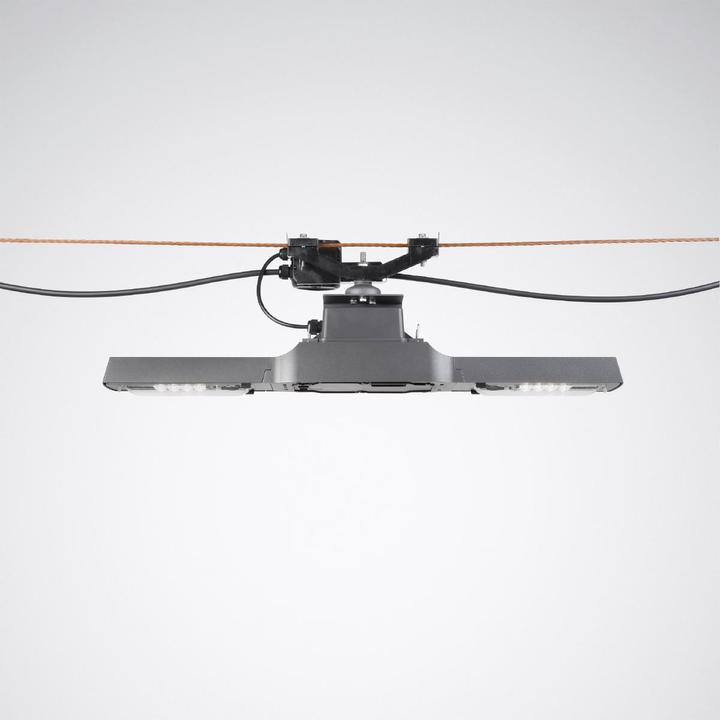

LED pendant luminaire for street lighting. With power reduction via control phase. Switching off a control phase causes the luminaire luminous flux to be set to 50 %. For suspended mounting across the carriageway. The cable suspension made of glass fibre reinforced polyester must be ordered separately as an accessory. Optical system designed in multi-lens technology (MLT). Luminaire optics consisting of highly efficient, UV and temperature-resistant lens systems. With symmetrical wide beam light distribution. Further beam characteristics are available for flexible adaptation to customised lighting tasks. LED system consisting of 4 MLT LED modules with 4 LEDs each. Rated luminous flux 2600 lm, rated wattage 17.50 W, maximum luminaire luminous efficacy 149 lm/W. Light colour neutral white, most similar colour temperature (CCT) 4000 K, general colour rendering index (CRI) Ra > 70. Colour location tolerance (initial MacAdam) = 5 SDCM. Other LED light colours available on request. Average rated service life LCLO(tq 25 °C) = 100,000 h. The light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Luminaire body made of die-cast aluminium. Colour anthracite, similar to DB 703 (DB 703). Protection class (EN 61140): II, degree of protection (DIN EN 60529): IP66, degree of impact resistance according to IEC 62262: IK06. Weight: 9.0 kg. With electronic control gear, switchable. Parameterisable control gear with luminous flux stabilisation (CLO). The control gear is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Surge voltage resistance differential mode / common mode: 6 kV / 10 kV. The product fulfils the essential requirements of the applicable EU directives and the Product Safety Act and bears the CE mark. In addition, the luminaire is ENEC-certified by an independent test centre.
