Trilux LED downlight

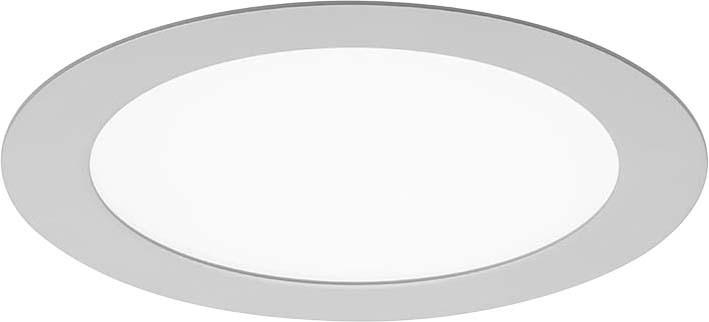

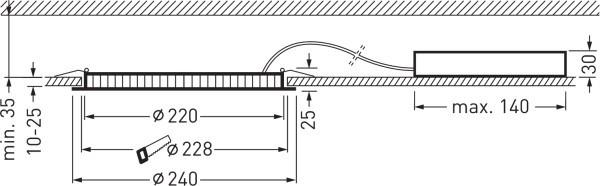

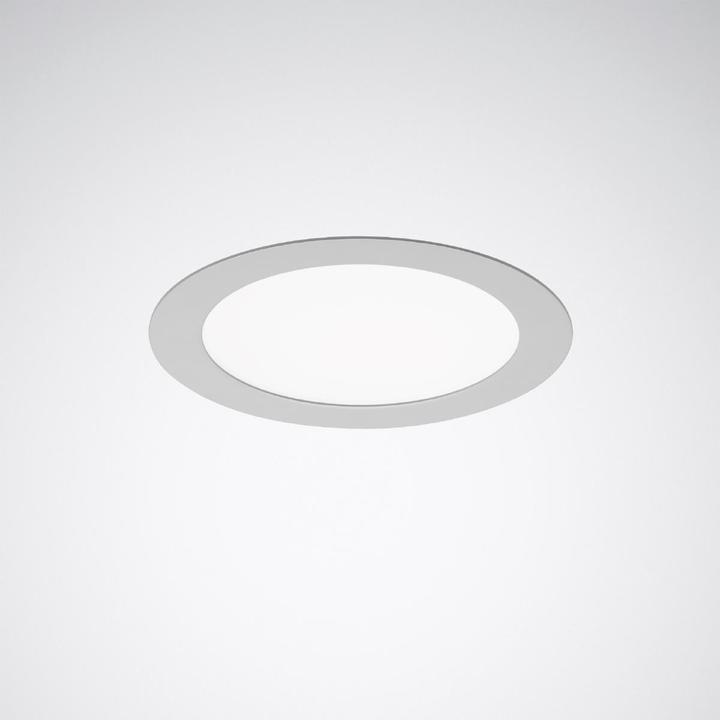

Round LED recessed downlight. Toolless ceiling installation thanks to quick-mounting springs. Ceiling cut-out 228 mm, installation depth45 mm. With opal PMMA cover. With symmetrical wide light distribution. Rated luminous flux 2000 lm, rated power 24.00 W, luminaire luminous efficacy 83 lmW. Light colour neutral white, most similar colour temperature CCT 4000 K, general colour rendering index CRI Ra 80. Average rated service life L80tq 25 C 50.000 h. Die-cast aluminium body. Ceiling ring powder coated white RAL 9016. Outer dimensions ceiling ring 240 mm, luminaire height 24 mm. Permissible ambient temperature ta: -20C 25 C. Protection class EN 61140: II, protection class DIN EN 60529: IP20, protection class room side: IP44, impact resistance according to IEC 62262: IK05, test temperature glow wire test according to IEC 60695-2-11: 650 C. Weight: 0.8 kg. With external control gear, digitally dimmable DALI. Control gear according to DALI-2 standard EN 62386. Luminaire can be switched and dimmed by means of a push-button function via DALI control terminals Touch DIM.The control gear can be replaced according to the eco-design requirements VO EU 20192020. The product complies with the essential requirements of the applicable EU directives and product safety laws and carries the . In addition, the luminaire is ENEC certified by an independent inspection body. Aviella C07 OA 2000-840 ETDD 01.
