Trilux LED ceiling light Lunexo H1 CDP I 6500 830 ETDD 01

Luminaire type

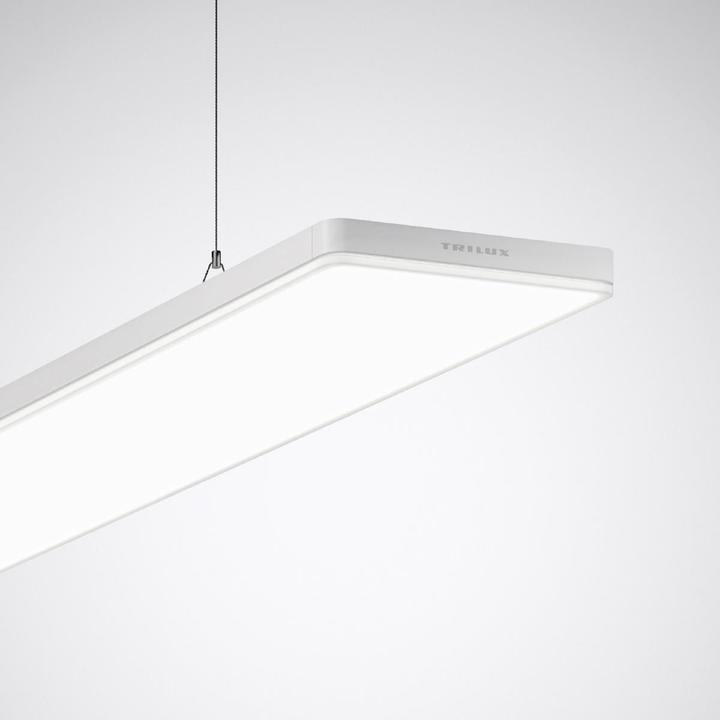

Exclusive rectangular suspended LED luminaire with rounded corners and visible light edge.

Applications
For innovative and prestigious office lighting.

Mounting methods
Suspended luminaire for single luminaire applications. Suspended mounting via Y-wire suspension contained in scope of supply.

Optical system
With inner CDP-I microprismatics. Frosted PMMA cover with lateral light emission edge. Soft light effect with complete glare illumination. With direct-indirect light distribution. Glare evaluation according to UGR rating (EN 12464-1) < 16. VDU workstation-compliant in accordance with 12464-1.

LED system
Luminaire luminous flux 6300 lm, connected load 59.00 W, Power Factor λ > 0.95, luminous efficiency of luminaire 106 lm/W. Light colour warm white, correlated colour temperature (CCT) 3000 K, general colour rendering index (CRI) Ra > 80. Mean rated service life L80(tq 25 °C) = 70,000 h, mean rated service life L85(tq 25 °C) = 50,000 h. The light source is replaceable according to the ecodesign requirements.

Electrical version
With electronic transformer, digitally dimmable (DALI). Control gear unit according to DALI-2 standard (EN 62386). The control gear unit is replaceable in accordance with the ecodesign requirements. Number of occupied DALI devices: 2. The luminaire can be equipped with the Monitoring Ready (MOR) functionality on request. The luminaire complies with the fundamental requirements of applicable EU regulations and product safety legislation and bears the CE symbol. The luminaire is also ENEC-certified by an independent testing authority.
