Trilux 8841 AB14L/700-730 2G2 ETDD

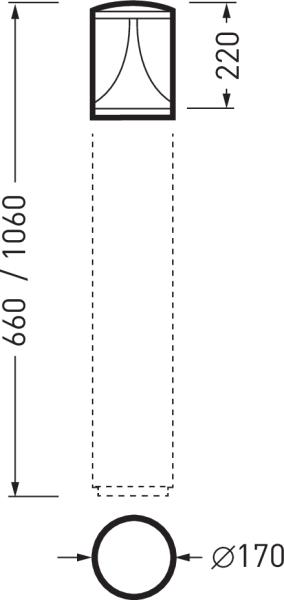

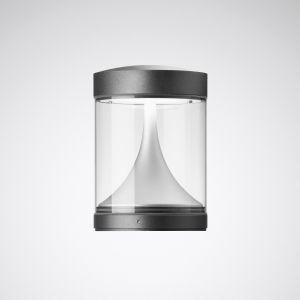

Pole head unit with circular cone-shaped, opal PMMA reflector. Usable in combination with separately ordered stand pipes in various designs and heights. Designed for illuminating pathways up to 3 meters wide. Features 2 LED modules, each with 4 LEDs integrated into a lens system, emitting light directly. The optical system is designed using Multi-Lens Technology (MLT). It provides an asymmetrically wide beam distribution. Additional beam characteristics are available for flexible adaptation to specific lighting tasks. The luminous flux and light color are fixed, with constant light output maintenance at the end of the lifespan (CLO). Rated luminous flux is 700 lm, rated power is 7 W, and maximum luminous efficacy is 100 lm/W. Light color is warm white, with a correlated color temperature (CCT) of 3000 K, and a general color rendering index (CRI) of Ra > 70. Color tolerance (initial MacAdam) = 5 SDCM. The light source is replaceable according to eco-design requirements. Seawater-resistant coating available upon request. Luminous diameter is 172 mm, and height is 425 mm. End cylinder made of high-impact PMMA, clear. Protection class (EN 61140): II, protection rating (DIN EN 60529): IP65, impact resistance grade according to IEC 62262: IK04. Permissible ambient temperature (ta): -20 °C to 25 °C. Wind attack area fw 7.000 m². Weight: 2.5 kg. Equipped with an electronic control gear, digitally dimmable (DALI). Control gear complies with DALI-2 standard. The control gear is replaceable according to eco-design requirements. Surge voltage resistance Differential Mode / Common Mode: 6 kV / 10 kV. The product meets the fundamental requirements of applicable EU directives and the Product Safety Act and bears the CE marking. The luminaire is guaranteed for 10 years, and spare parts (LED module, control gear, optical system) are available for 15 years from the invoice date, subject to reasonable changes that serve progress.
