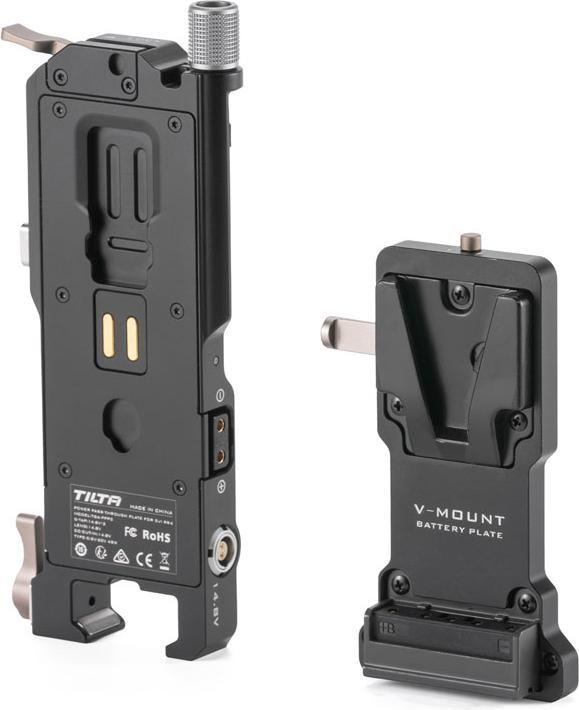

Tilta Power Pass-through Kit for DJI Ronin, V-Mount

This Power Pass-through Kit replaces the original plate of the DJI RS 2, RS 3, RS 3 Pro, RS 4, and RS 4 Pro to expand the power supply options for cameras and accessories.

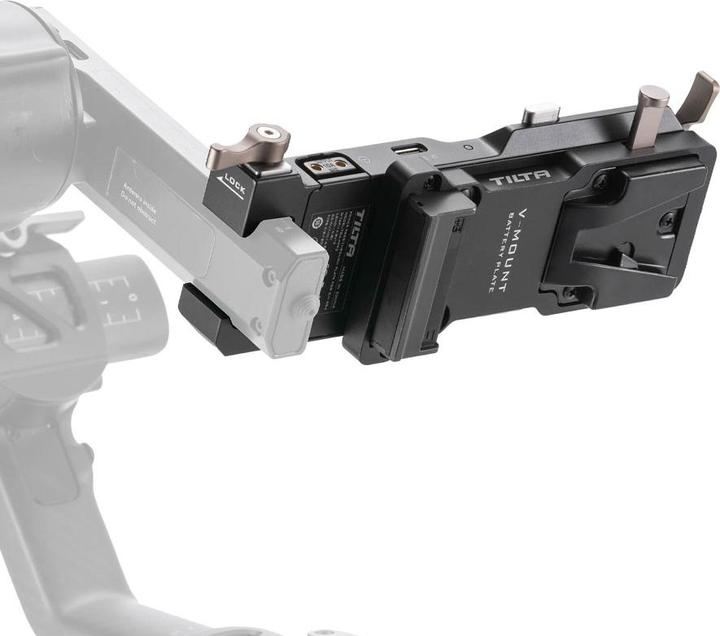

Users can remove the original Ronin plate by unlocking the height adjustment lever and pulling the plate out, then attach this accessory in the same manner. The V-Mount battery plate can then be connected to secure V-Mount batteries underneath the plate.

The plate features two D-Tap output connectors, a 2-pin Lemo connector, and a USB-C port (45 W, 20 V/2.25 A), ideal for powering the camera via dummy battery cables or accessories like wireless follow-focus motors. The 2-pin Lemo connector can also be used as a power input, allowing users to power the plate from an external source using a 2-pin power cable.

This plate enhances camera balance and leads to improved gimbal performance through an optimized center of gravity, which is particularly beneficial when using longer lenses.

The Manfrotto receiver on the top and the cold shoe mount on the bottom are identical to the original, meaning that DJI accessories such as the Manfrotto quick release plate or the Raven Eye Wireless Video Transmitter remain compatible.

Package includes:
1x Power Pass-through Plate for DJI Ronin
1x Battery Plate for DJI Ronin Power Pass-through Plate, V Mount.
