Product details

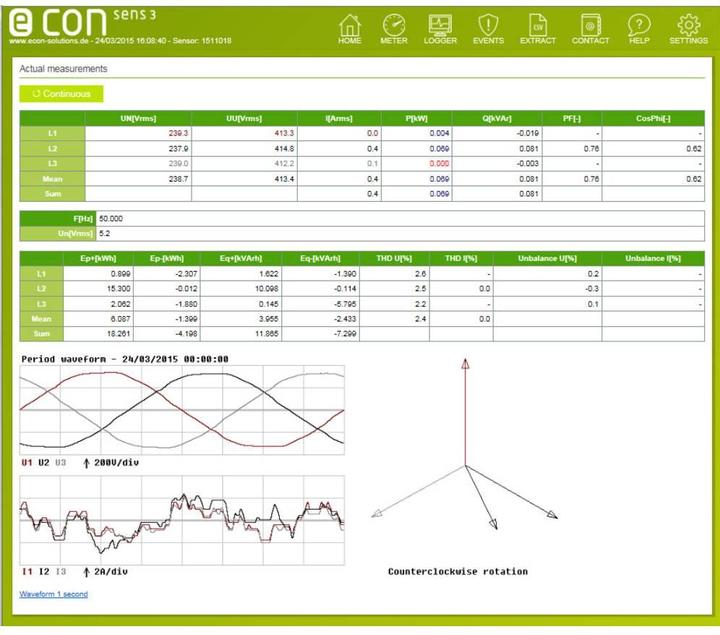

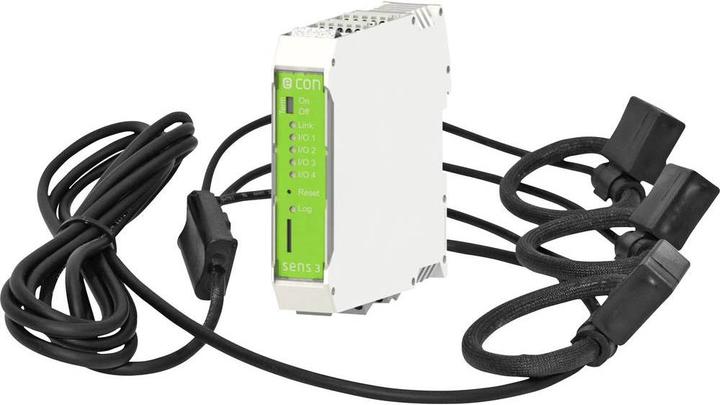

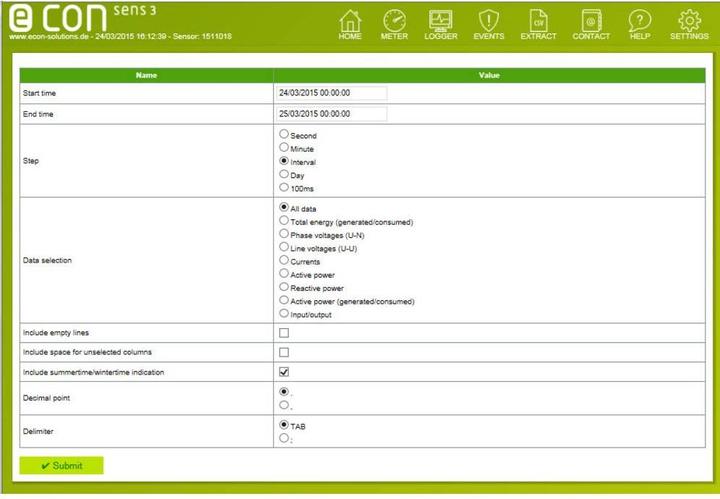

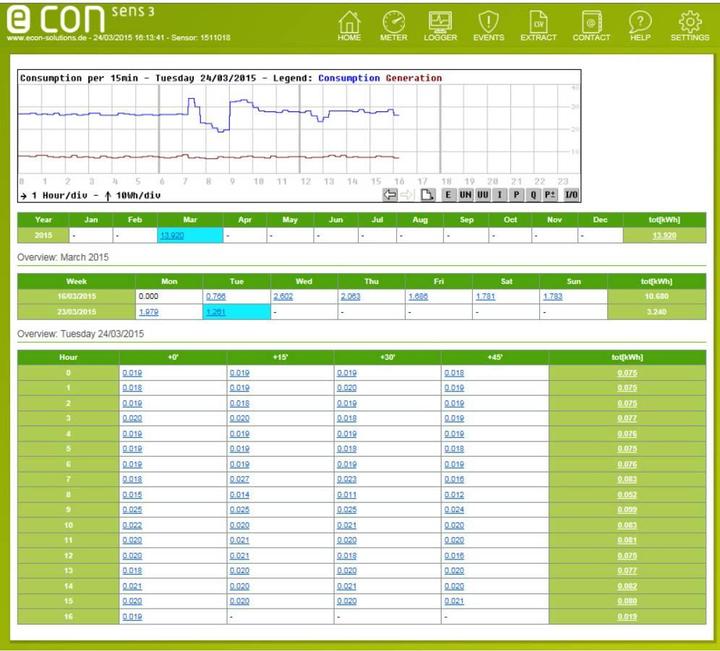

Multifunctional energy and power measurement device for easy, quick installation and immediate recording of power, current, and voltage data. For simple evaluation and analysis of the measurement data, the econ sens3 features integrated analysis software. Access is quick and easy through your internet browser without the need to install additional software. The values of the measured quantities are stored in varying time resolutions from seconds to daily, weekly, and monthly values in the internal memory.

Core functions and features of the econ sens3:

  • Easy installation on standardized DIN rail
  • Measurement of electrical power, energy, and other quantities using indirect measurement methods
  • Uninterrupted installation possible
  • Ideal for installation in existing systems and distributions
  • Rogowski coils for current measurement range from 3A to 400A
  • Integrated analysis software for direct evaluation and analysis
  • Optional: PRO upgrade for network analysis and power quality monitoring
  • Optional: LOG upgrade for data logger function to connect up to 4 additional measuring devices with digital and analog interfaces.

Key specifications

Maximum current
400 A
Energy meter type
Energy meter
mounting style
Top-hat rail
Nominal voltage
230 V
Item number
8478907

General information

Publisher
Econ
Category
Energy monitors
Manufacturer no.
econ sens3 - 400A
Release date
21.4.2018

Energy meter property

Energy meter type
Energy meter
mounting style
Top-hat rail
Maximum current
400 A
Nominal voltage
230 V

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Height
9.90 mm
Length
9.90 mm
Width
22.50 mm
