Thomas & Betts Soft starter

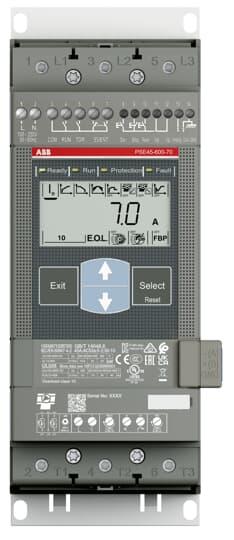

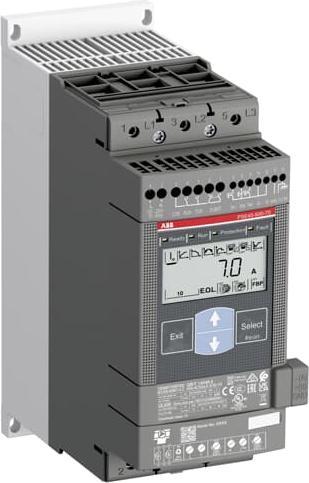

The softstarter PSE45-600-70 has a rated maximum operational current of 45 A with an operating voltage span from 208 to 600 V AC. The rated control voltage is between 100 and 250 V AC at 50/60 Hz. PSE features a two-phase control with a soft start and stop through a voltage or a torque ramp. It has a built-in bypass for easy installation and energy saving. A RUN, TOR, and event signal is available from a relay output in normally open state. The PSE has functions such as current limit, kickstart, analog output, end of line, underload, and locked rotor protection. To interact with PSE, it has an illuminated display that uses symbols to become language neutral. As an option, you can add an identical external keypad with a rating of IP66. There are three ways to communicate with PSE. It can be done by hardwire inputs Start/Stop or by reset of fault. Another popular option is the built-in fieldbus communication Modbus RTU. You can also use an external adaptor and a Fieldbus plug. PSE is a true general-purpose softstarter. It’s a perfect balance between high starting capacity and cost efficiency. Very suitable for small to medium-sized three-phase motors with nominal currents from 18 to 370 A. Typical applications include pumps, fans, compressors, and conveyors.
