Thermaltake View 170 TG ARGB Black

mATX, Mini-ITX
Delivered tomorrow
Only 4 items in stock

Product details

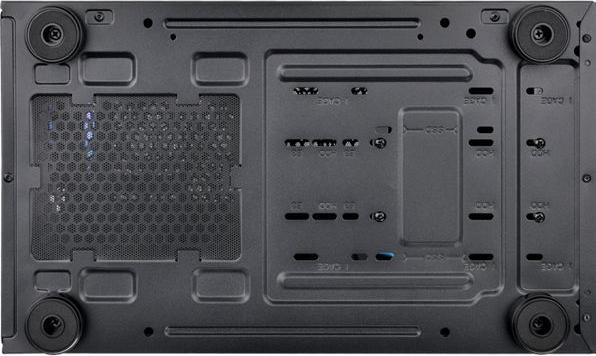

Designed for stunning views thanks to the tempered glass front and side panels, the View 170 TG ARGB is sure to impress. It supports M-ATX builds and features mounting points for up to 7 fans, along with a ventilated bottom cover that offers flexibility in a compact format.

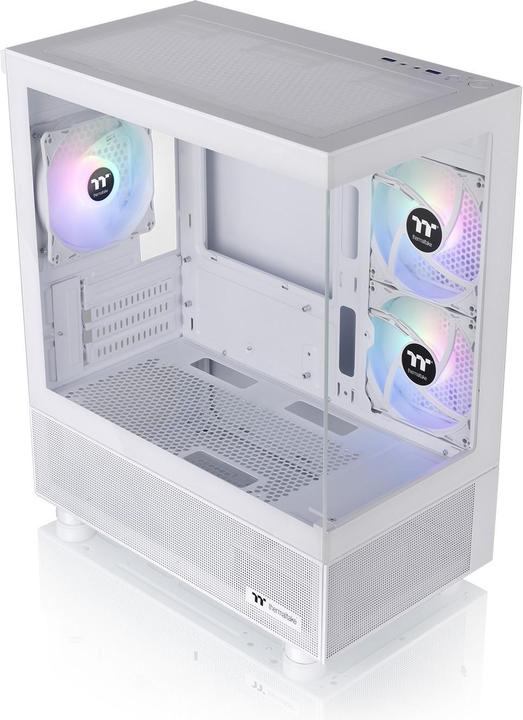

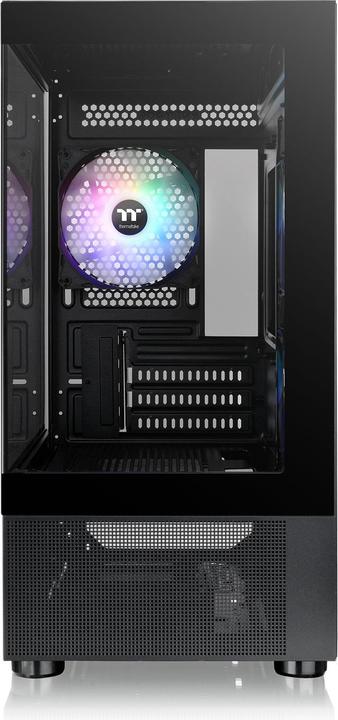

The View 170 TG ARGB is equipped with two tempered glass panels located at the front and side of the case, providing the best angles to showcase your system inside.

With support for up to 280 mm radiators at the top of the case, the View 170 TG ARGB can meet the cooling needs of some more demanding systems while maintaining an appealing look to display your components.

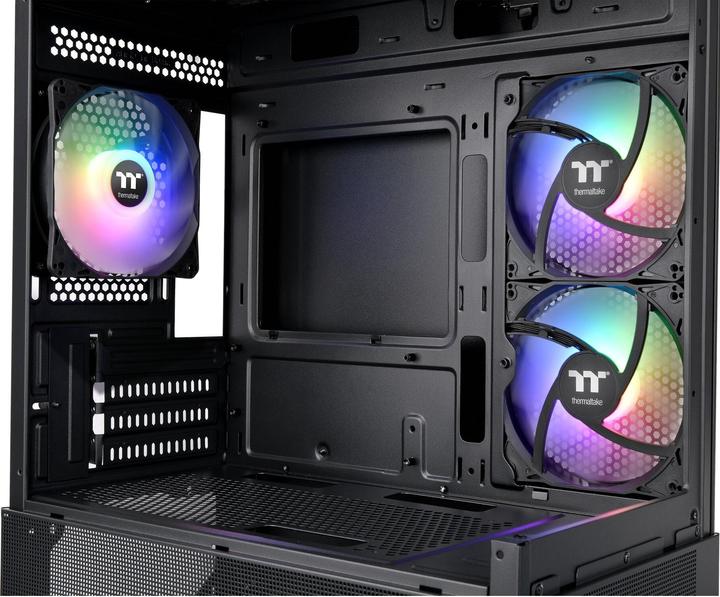

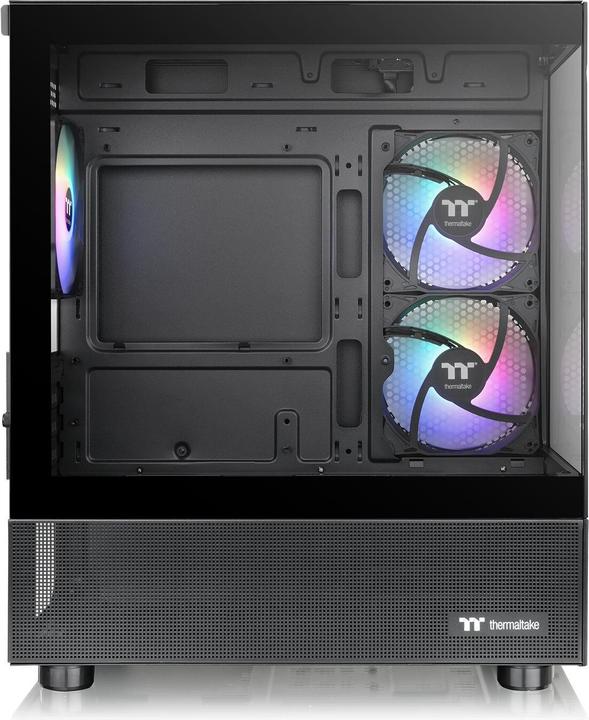

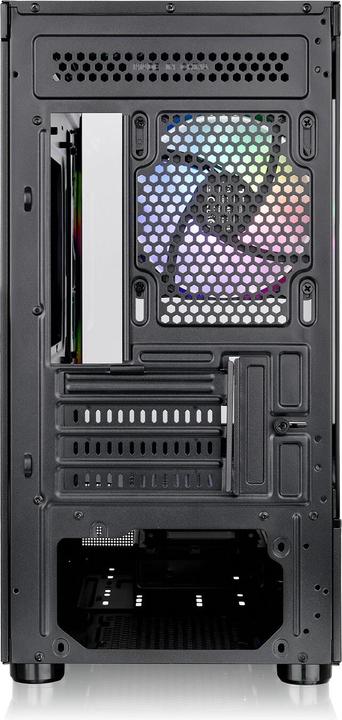

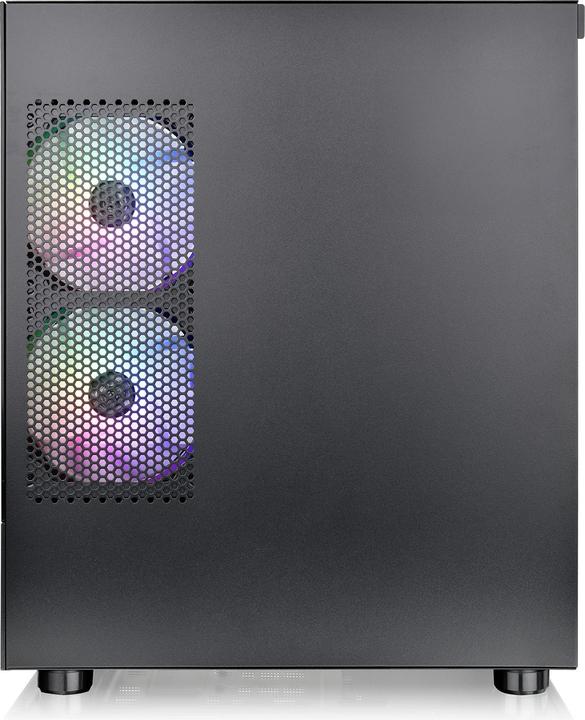

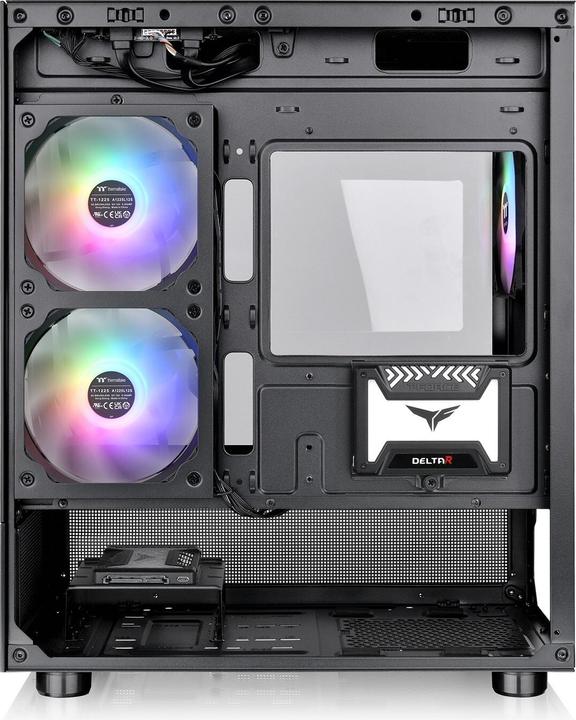

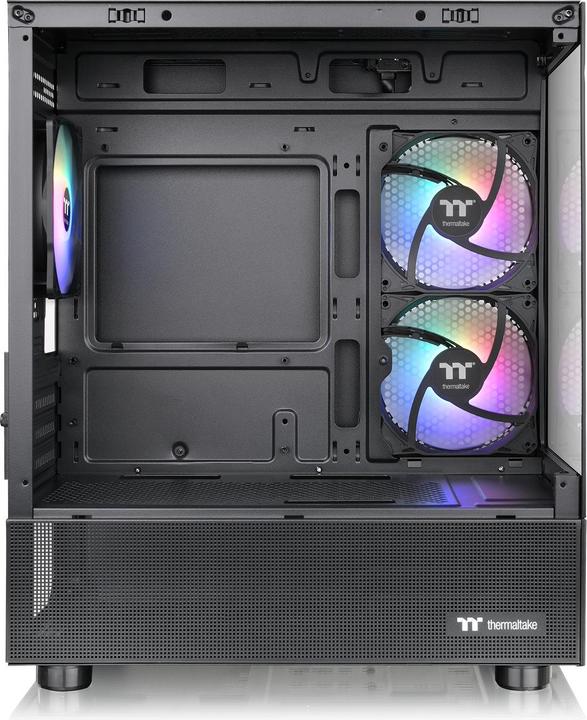

The View 170 TG ARGB comes with three pre-installed 120 mm ARGB Lite fans at the rear and side of the case. The lighting can be controlled through any supported ARGB software, such as those from Asus, Gigabyte, MSI, and ASRock.

The View 170 can support a total of up to two 2.5” SSDs and one 3.5” HDD.

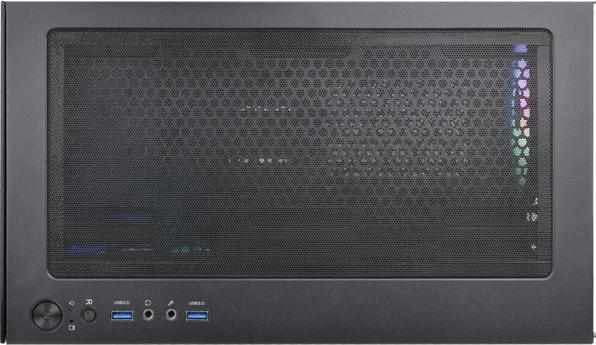

Two USB 3.0 ports and an HD audio port are located on the top panel for immediate access when needed.

Designed for synchronization with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, and ASRock Polychrome, it supports motherboards with a 5V addressable RGB header, allowing you to control the lights directly through the aforementioned software without the need to install additional lighting software or controllers.

Key specifications

PC case design
Midi Tower
Number of 3.5" drive slots (internal)
1 x
Max. length graphics card
340 mm
Front connectors
2x USB 3.2 Gen 1HeadphonesMicrophone
PC case features
Side windows
Max. height CPU cooler
160 mm
Item number
46647543

General information

Manufacturer
Thermaltake
Category
PC case
Manufacturer no.
CA-1Z4-00M1WN-00
Release date
20.6.2024
Sales rank in Category PC case
32 of 2791
May include power adapter
No

Colour

Colour
Black
Exact colour description
Black

Material

Material group
GlassMetalPlastic
Material
Hardened glassPlasticSpcc

PC case properties

PC case design
Midi Tower
Form factor
Micro ATX (mATX)Mini-ITX
Number of 3.5" drive slots (external)
1 x
Number of 3.5" drive slots (internal)
1 x
"Number of 2.5""/3.5"" combination slots"
1 x
"Number of 2.5"" drive slots"
2 x
Number of expansion card slots
4 x
Max. length graphics card
340 mm
Max. height CPU cooler
160 mm
Max length of power supply
180 mm
LED colour
Multicoloured
PC case features
Side windows

Connections

Front connectors
2x USB 3.2 Gen 1HeadphonesMicrophone

Cooling properties

Number of fans
3 x
Number of fan slots
7 x
Fan location
AspectBottom sideRear side
Number of radiator mounts
2
Radiator locations
Rear sideTop side
Cooling properties
Water cooling possible

Front side

Fans included
3x 120mm
Fan mount locations
2x 120mm
Radiator mount locations
1x max. 120mm

Rear side

Fans included
1x 120mm
Fan mount locations
1x 120mm
Radiator mount locations
1x max. 120mm

Side

Fans included
2x 120mm
Fan mount locations
2x 120mm
Radiator mount locations
1x max. 120mm

Bottom side

LED colour
Multicoloured
Fans included
1x 120mm
Fan mount locations
2x 120mm
Radiator mount locations
1x max. 120mm

Top side

Fans included
2x 120mm
Fan mount locations
2x 120mm2x 140mm
Radiator mount locations
1x max. 120mm1x max. 140mm1x max. 240mm1x max. 280mm

HDD Cage

LED colour
Multicoloured
Fans included
2x 120mm
Fan mount locations
2x 120mm
Radiator mount locations
1x max. 120mm

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Height
43.80 cm
Length
37.75 cm
Width
21.20 cm
Weight
6.35 kg

Package dimensions

Length
44.10 cm
Width
48.10 cm
Height
27.10 cm
Weight
5.66 kg
