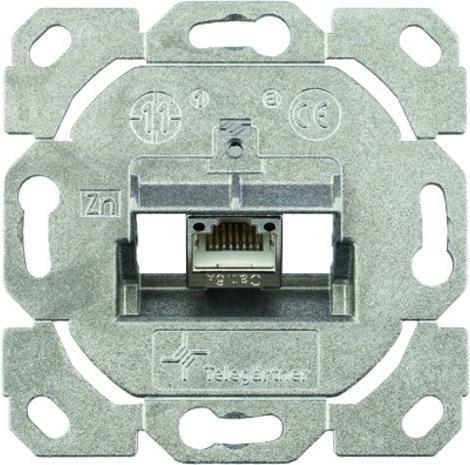

Telegärtner Module holder AMJ-S 1gang UP/0flex Cat6A T568B J0002

Ready for any situation: The wide variety of module sockets from Telegärtner provides the right product for every need. Whether in a skirting channel, on or under plaster. Available either as an unpopulated variant for individual configuration or already pre-populated with our high-performance modules. The populated variants ensure transmission characteristics according to Cat.6A, in accordance with EN 60603-7-51. The socket spacing of the proven AMJ45 connection socket and the UAE connection socket is guaranteed. This offers users unprecedented design options for tackling their daily cabling tasks.

Features:

• Cat.6A ISO/IEC according to IEC 60603-7-51
• Cat.6A ISO/IEC re-embedded tested according to IEC 60512-27-100
• Link certification: Class EA ISO/IEC according to ISO/IEC 11801
• 10 Gigabit Ethernet compliant with IEEE 802.3an
• Contact over-bend protection: 750 mating cycles with RJ45/RJ11/RJ12 connectors
• Suitable for PoE according to IEEE 802.3at
• With design-capable module socket AMJ-S Up0flex
• Compatible with covers from various switch program manufacturers
• Integrated cable catch for cable diameters up to mm

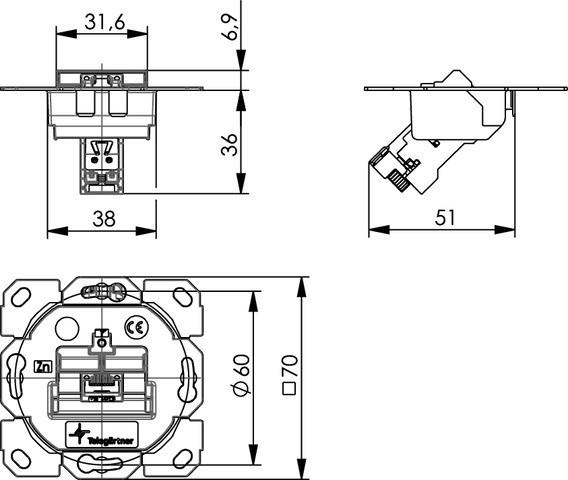

• Universal worldwide available installation dimensions for mounting cutouts 19.3 x 14.7 mm
• Optically monitored testing of RJ45 contact heights
• Flush-mounted installation possible
• Populated with up to three AMJ-S modules

Notes: For skirting channels and underfloor installations, appropriate electronic boxes must be provided.

Design: Module carrier including AMJ-S module Cat.6A ISO/IEC T568B, combinable with covers from various switch program manufacturers.

Series: AMJ-S
Short designation: Design-capable module socket AMJ-S single UP0 flex 100022969.
