Tele Monitoring relay

Ratings
BrandMore from Tele
Currently out of stock
Free shipping starting at 50.–

Product details

The monitoring relay from the product series branded WatchDog offers even more functionality in its new housing. Consistently and innovatively developed both externally and internally - user-friendly, space-saving, and aligned with international standards. The device in a 22.5 mm slim housing allows for easy and quick installation, practical terminals, a maximum of control and display elements, as well as a consistent concept for relay status (the relay is energized in a good condition) and visualization. The power supply can be provided either with the optional power modules (AC 230 or 400 V) or via the measurement voltage. These functions ensure optimal adaptation to the application and facilitate commissioning.

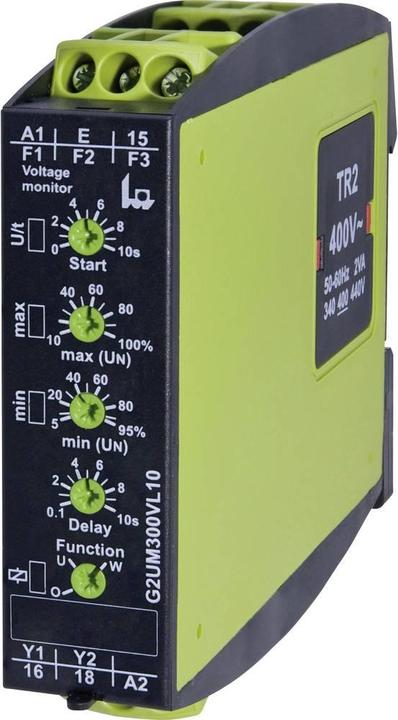

Brief description Type G2UM300VL10: Over-voltage, under-voltage, or window with adjustable threshold values and hysteresis
* Selectable fault memory
* Start bypass and release delay separately adjustable
* Measurement quantity DC or AC sine (16.6 - 400 Hz)
* Measurement ranges 30 V/60 V/300 V selectable via terminals
* Power supply selectable via power modules (not included in the delivery).

Key specifications

Relay type
Monitoring relay
input voltage
24 V

General information

Item number
8419687
Manufacturer
Tele
Category
Relays
Manufacturer no.
2390300
Release date
20.4.2018

Relay properties

Relay type
Monitoring relay
input voltage
24 V
Switching function
Changer
Max. Switching capacity
1.25 kW

Scope of delivery

Scope of delivery
1 piece

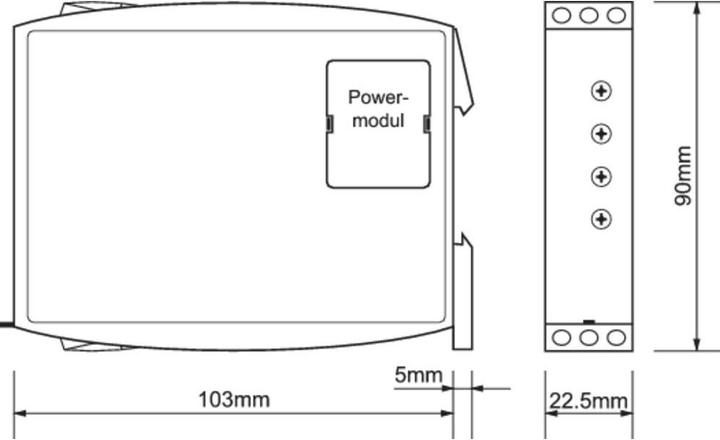

Product dimensions

Length
103 mm
Width
22.50 mm
Height
90 mm
