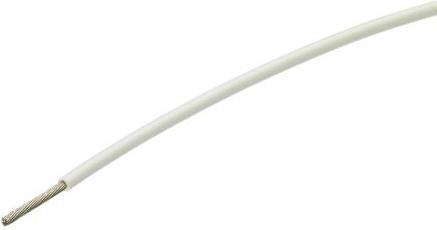

TE Connectivity White flexlite equipment wire.0.50sq.mm

Conductor cross-section: 0.5 mm
Sheath color: white
Stranded wires: 19/0.19 mm
Insulation material: polyolefin
Outer diameter: 1.31 mm
Length: 100 m
Operating voltage: 600 V
Conductor material: tinned copper
Operating temperature max: +150 °C
Series: FlexLite
Cable profile: single core

FlexLite UL cable is a heavy-duty, flexible double insulated cable suitable for industrial and commercial applications, including control panels, electrical equipment, electric motors, and robots.

Features and benefits include:

• Flexible with fusible insulation
• Allows cable bundles to be routed in areas where conventional cable cannot
• UL style 1385, CSA Class 5851
• Double wall insulation (Class 2 devices)
• Meets VW-1 requirements (flammability)
• Excellent resistance to liquids and chemicals
• 150 °C specification WCD645
• Degree of protection: 600 V
• Small and lightweight.
