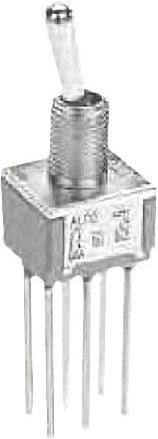

TE Connectivity Switch,toggle,2P,on on,panel mount,5A

The double-pole toggle switch (DPDT) is a versatile and reliable component designed for front panel mounting. With a latching switching sequence, this switch allows for precise control of electrical circuits. It is rated for a contact current of up to 5 A at 28 V DC and offers high reliability with a contact resistance of only 10 mΩ. The switch is suitable for an operating temperature range of -30 to +85 °C, making it ideal for various applications in different environments. It is mounted via through-hole installation on printed circuit boards, and the panel cutout has a diameter of 6.35 mm. The actuator length is 10.41 mm and is made of phenolic material, ensuring long-lasting use. The terminal connections are sealed with epoxy adhesive, and the stainless steel frame with a solder tab made of tinned brass ensures a secure and stable connection.

• Double-pole toggle switch (DPDT) with latching switching sequence
• Contact current rating of 5 A at 28 V DC
• Operating temperature range of -30 to +85 °C
• Through-hole mounting on printed circuit boards with a 6.35 mm panel cutout
• Stainless steel frame with tinned brass for increased stability.
