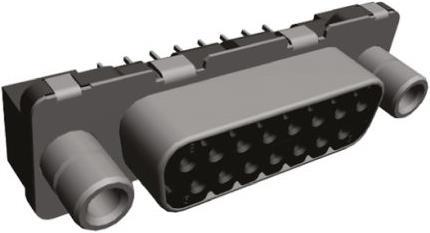

TE Connectivity AMPLIMITE HDP-20 d-sub PCB socket,15 way

Currently out of stock
Free shipping starting at 50.–

Product details

Number of contacts = 15
Gender = Female
Housing orientation = Straight
Mounting type = Thru-hole
Pitch = 2.74mm
Rated current = 6A
Package Material = PET
Length = 39.2mm
Width = 12.1mm
Depth = 12.4mm
Dimensions = 39.2 x 12.1 x 12.4mm
Contact plating = Gold over nickel

D-Sub female connectors with mounting pins can only be used with PCBs 1.6mm thick. AMPLIMITE HD-20 D-Sub connectors, standard pin headers in socket design for PCB mounting. AMPLIMITE HD-20 D-sub male receptacles in socket design for plated-through, vertical standard PCB mounting with tin-plated steel front housing and black polyester GF housing conforming to UL 94V-0. These AMPLIMITE HD-20 PCB D-sub female receptacles are pre-assembled with gold-plated phosphor bronze solder contacts and are available with a variety of matching connector latching options and PCB mounting pins (see table for details). For matching connectors, see part numbers ; 718-3871 718-3871 , ; 409-3315 409-3315 , ; 536-9685 536-9685 , ; 409-3292 409-3292 , ; 680-7756 680-7756 , ; 680-8803 680-8803 and ; 536-9714 536-9714 (typical).

Key specifications

Item number
9902740

General information

Manufacturer
TE Connectivity
Category
Cables + Plugs
Manufacturer no.
3-338314-2
Release date
16.10.2018

Cable + Connector Features

mounting type
Push-through mounting
Connectors Design
Flat
