TDE Instruments Digital DIN rail meter Digalox Graphic DIN meter for 2x 0/4 20mA with multiple display

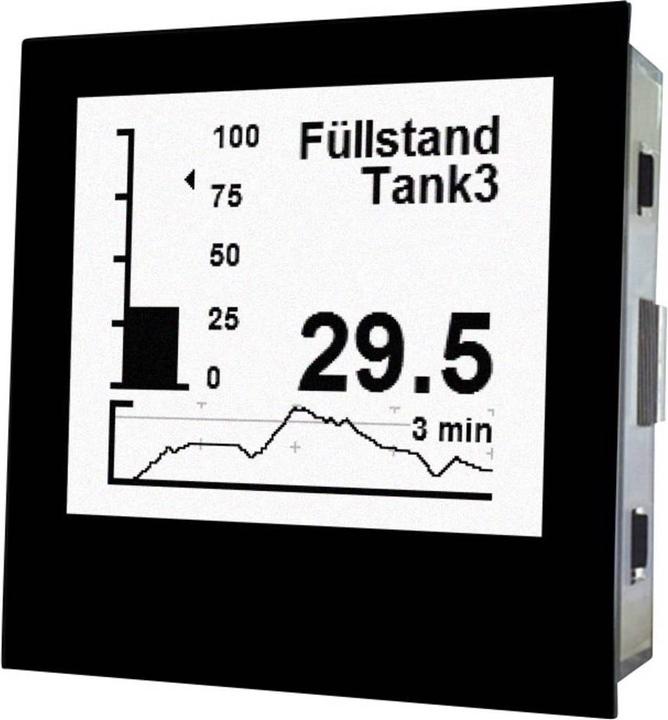

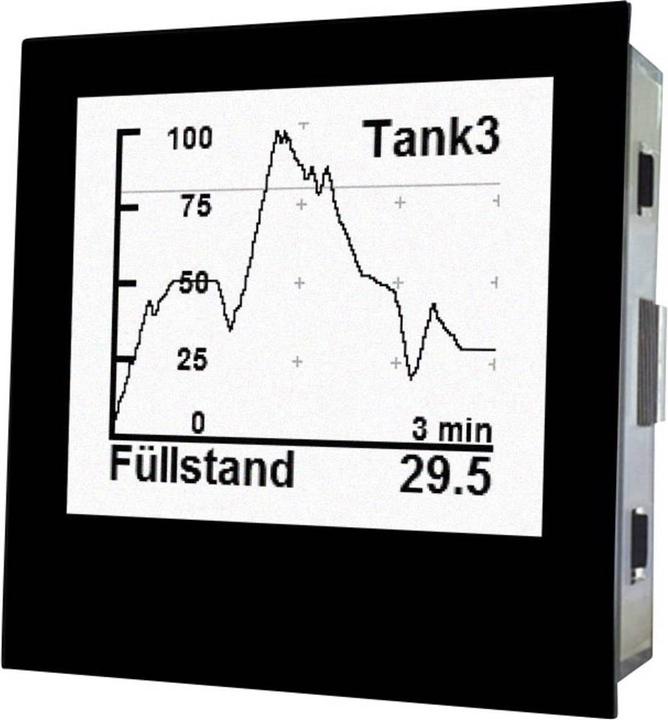

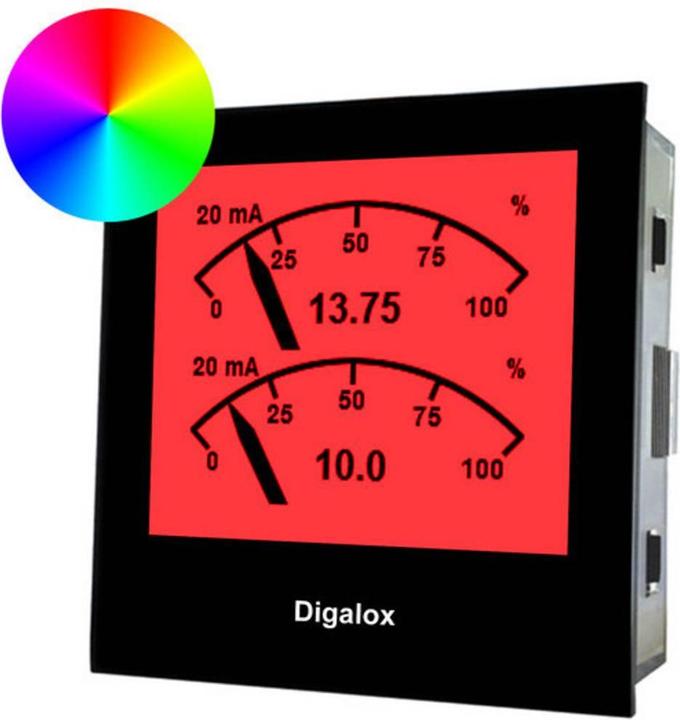

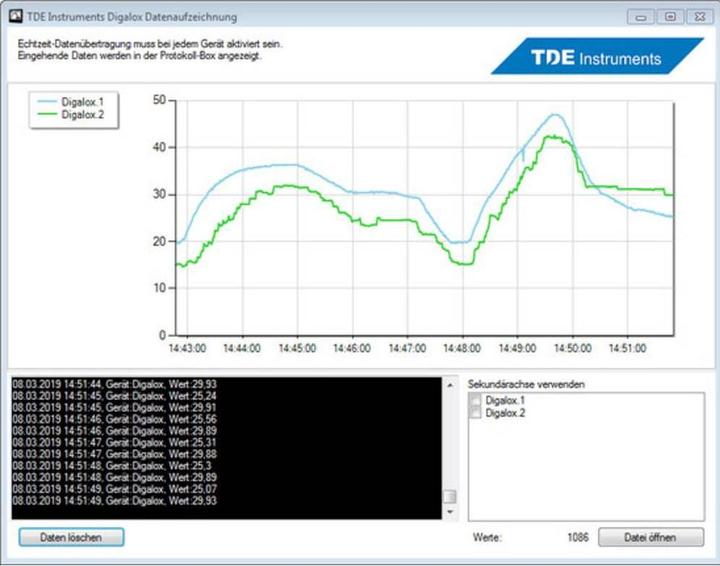

It supports the measurement type Analog signal 0/4 to 20 mA DC at two measurement inputs. The multi-display allows two parameters to be displayed simultaneously, and thresholds can be assigned individual color warnings. Minimum and maximum values are recorded and can be displayed and reset via a jumper or external switch. The device records measurement values of one parameter over a duration of three minutes to 14 days. The time range and the display of the trend graph of the measurement values can be switched via an external switch. The values remain stored as long as the device is powered. Using the associated USB configuration software, the following parameters can be configured: scale range, scale labeling, display design (pointer, dial, bar, etc.), start graphic, illumination color, threshold values for alarm outputs, color warning per threshold (steady or blinking), hysteresis, and much more. Through the software, measurement values can be read from the memory and continuous data transmission can be activated. The measurement values can be graphically evaluated within the software and exported as a CSV file.
