TCI Ballast power supply JOLLY MD 32 dimmable with phase control section

Ratings
BrandMore from TCI
Delivered between Fri, 15.8. and Tue, 26.8.
Supplied by
Venova CH
free shipping

Product details

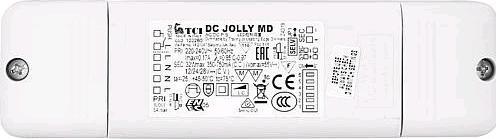

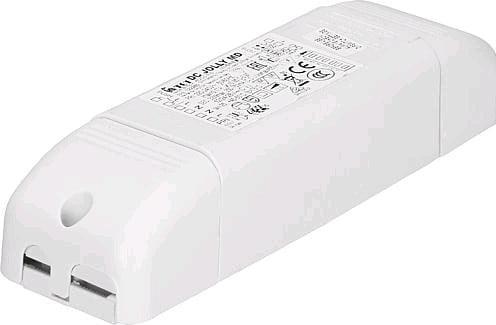

Ballast/Power Supply TCI Jolly MD

This dimmable ballast can be controlled with phase dimmers or via a potential-free push-button input (jumper must be removed). It can also be switched on or off using a push-button. The device features electronic short-circuit, overvoltage, overload, and overheating protection. The secondary DC voltage or constant current is adjustable via a dip switch, with load options of 350mA at 17W, 500mA at 24W, 550mA at 25W, and 700mA or 750mA at 32W. It supports 12V-DC at 10W, 24V-DC at 20W, and 28V-DC at 22W.

Specifications include 230/12-24V-28V-DC or 350-500-550-700-750mA constant current, F/MM/ENEC/KemaKeur, with a temperature rating of 45°C for ta and 75°C for tc.

Technical data

EAN: 8010703300224

Product group: LED ballasts

Manufacturer: TCI

Supplier article number: 122260

Dimensions: 166x46x34mm

Power: 1-32W.

Key specifications

Lighting accessories type
Lamp ballast
Application range
Indoor
Smart Home
Not compatible
Item number
22731183

General information

Manufacturer
TCI
Category
Lighting accessories
Manufacturer no.
612810
Release date
19.10.2022

Accessory properties

Application range
Indoor
Lighting accessories type
Lamp ballast

Smart home features

Smart Home
Not compatible

Power supply

Power supply
Electrical connection

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Length
16.60 cm
Width
4.60 cm
Height
3.40 cm

Package dimensions

Length
18.20 cm
Width
9.20 cm
Height
4.20 cm
Weight
174 g
