Tamiya TA08R Chassis Kit
KitOnly 1 piece in stock at supplier
Product details

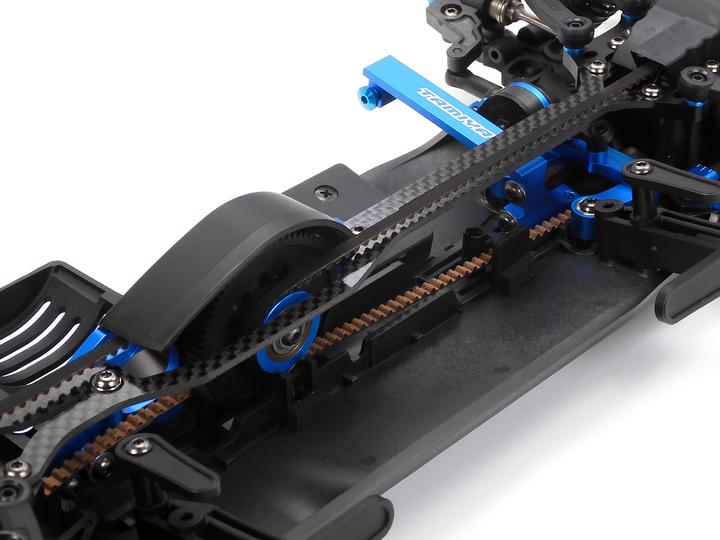

This kit transforms the TA08 2-belt drive chassis into a race-oriented unit with numerous hop-up options. It features a 2mm carbon fiber upper deck and a plastic lower deck with reinforcements for exceptional rigidity and superior steering that can be adjusted to your preference. The design includes A-shaped upper links and a four-wheel double wishbone suspension, while aluminum upper link brackets provide high rigidity. The rear body mountings have been reinforced for improved traction.
Drive train:
- Full ball bearings
- Front double cardan shafts
- Rear cardan shafts
- Front direct pulley (aluminum direct cup)
- 71T spur gear (TRF420 center pulley)
- Rear gear differential (aluminum differential joints, VG O-ring)
- Aluminum engine mount
Suspension:
- Front and rear aluminum upper arm bearings
- Adjustable aluminum suspension bearings
- Separate suspension bearings (XB/A)
- Low friction knuckle balls
- Super short dampers with large bore (VG O-rings)
Chassis:
- Carbon fiber upper deck (2.0mm)
- Carbon fiber rear body mounting plate (2.5mm)
- Aluminum rear body mounting post
- Aluminum servo mount
- Aluminum steering linkage
- Clamp wheel hubs (4mm)
Specifications:
Length: 373mm (chassis only), width: 182mm
Wheelbase: 257mm
Stepped V-design with carbon fiber reinforced plastic lower deck
Transverse motor, 2-belt drive 4WD
Front direct clutch, rear oil-filled gear differential
3-piece steering track bar
4-wheel independent suspension with double wishbones
TRF Super Short Big Bore dampers
Not included in the scope of delivery:
- Body
- Tires
- Type 540 motor
- 2-channel RC system with ESC
- Battery pack and charger.
Reproduction scale | 1:10 |
Scope of delivery | Battery (1x), Battery charger, Motor, Pushbikes, RC system, Servo, Shades, Tools |
Warning label toy | Caution: Not suitable for children under 14 years of age |
Engine type | Electric motor |
Battery type | Nickel metal hydride |
Voltage | 7.40 V |
Item number | 37551657 |
Colour | Black |
Exact colour description | Black |
Minimum age | 14 years |
Level | Advanced |
Warning label toy | Caution: Not suitable for children under 14 years of age |
Vehicle type | Street car |
Execution | Kit |
Reproduction scale | 1:10 |
Engine type | Electric motor |
RC Electric motor type | Brushless electric motor |
RC drive | Four-wheel drive |
Area of use | Street |
Operating mode | Remote control |
Wheelbase | 257 mm |
Battery type | Nickel metal hydride |
Voltage | 7.40 V |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Battery (1x), Battery charger, Motor, Pushbikes, RC system, Servo, Shades, Tools |
Additionally required (not included) | Battery (1x), Battery charger, Body, Control, Motor, Pushbikes, RC system, Servo, Shades, Tools |
Length | 373 mm |
Width | 182 mm |
Length | 46 cm |
Width | 22 cm |
Height | 12 cm |
Weight | 1.40 kg |
