Swit S-3822S | 2chx3A Fast Simultaneous Charger, adaptor out, V-mount

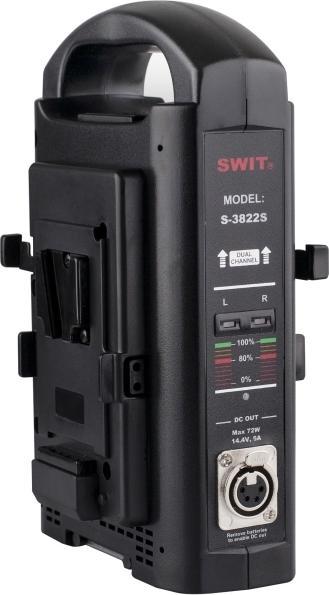

SWIT S-3822 2-Channel Simultaneous V-Mount Charger

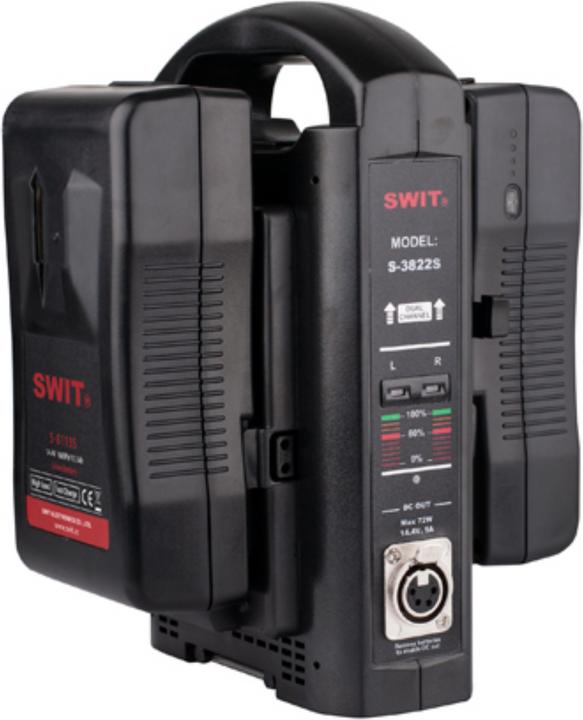

The portable charger S-3822S can charge 2 V-Mount batteries simultaneously. The charging current is 3A per channel, with a charging output of DC 16.8V, 3A×2.

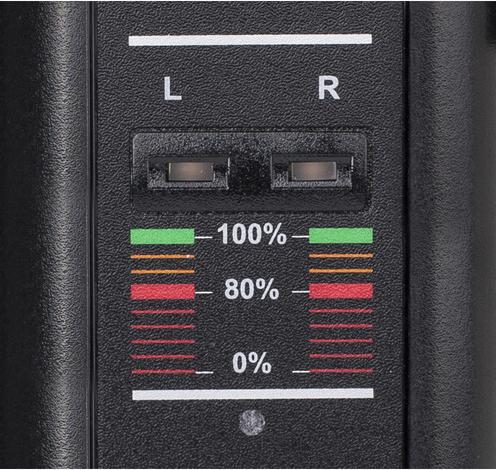

LED Charging Indicators

The S-3822S features LED charging indicators on the front panel that display the real-time capacity of each channel through different colors:

• Red: The battery is charging, capacity is below 80%;
• Yellow: The battery is charging, capacity is above 80%;
• Green: The charging process is complete.

AC/DC Output

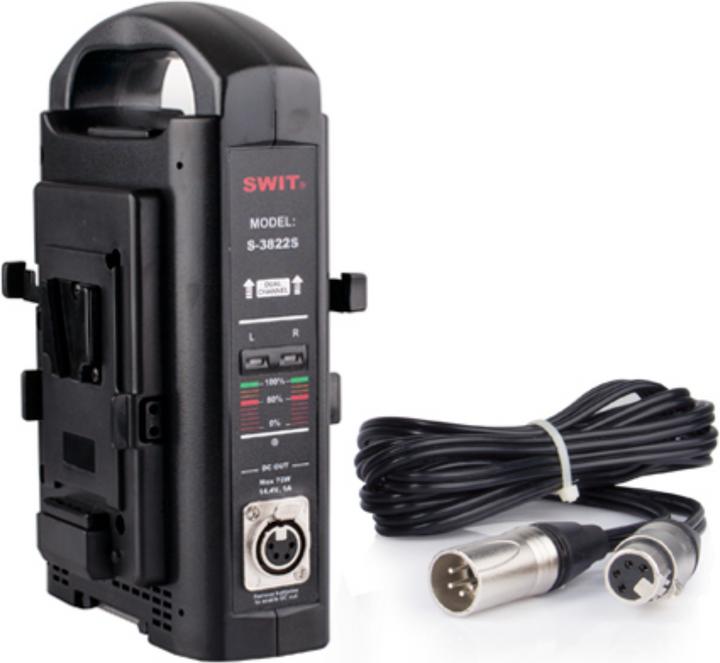

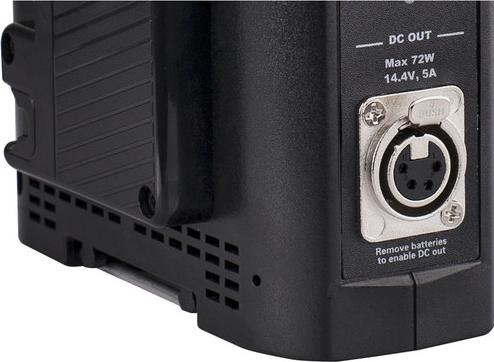

The S-3822S has a 4-pin XLR socket on the front panel. When used with the XLR plug cable SWIT S-7102 (available separately), the S-3822S can function as an AC-DC adapter for a DC 15V, 6A, 90W output. Please note that the AC-DC adjustment output does not work while the battery is charging.

Technical Specifications:

• Input: 100～240V, 50/60Hz
• Power Consumption: Max 136W
• Charging Output: DC 16.8V, 3A×2-channel
• Adjustment Output: DC 15V, 6A
• Operating Temperature: 0°C～+40°C
• Operating Humidity: 10%～90%
• Dimensions: 228mm×140mm×120mm
• Weight: Approx. 1.0kg.
