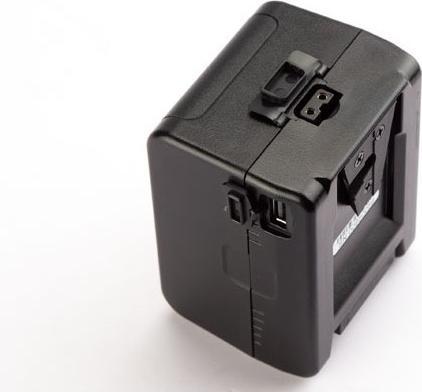

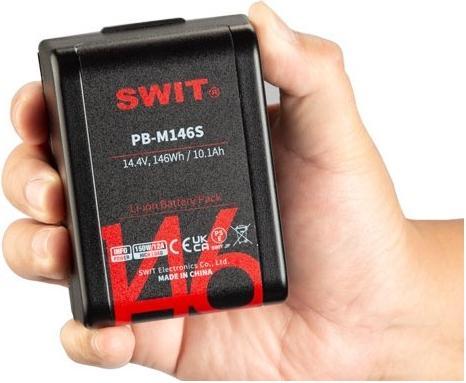

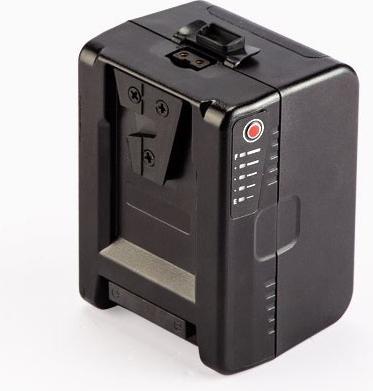

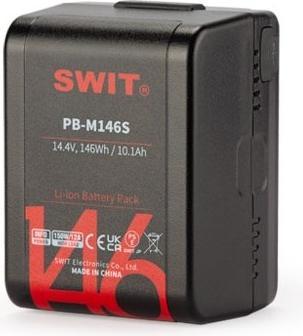

Swit PB-M146S | 146Wh Pocket Mini High load Battery, V-Mount, also ideal for long term use or high p

Portable Battery for V-Mount

As a new member of the PB-M series of portable batteries, the PB-M146S model offers a higher capacity of 146 Wh for longer operating times while maintaining compact dimensions for easy transport.

146 Wh, D-Tap, and USB

The PB-M146S has a nominal voltage of 14.4 V, a capacity of 146 Wh, a 5-level LED operating indicator, an integrated D-Tap DC output and charging input, as well as a 5 V/2 A USB-A output. The continuous load is 150 W, 12 A.

Hot-Swap Adapter

With the KA-M20S Hot-Swap Adapter, 2x PB-M146S can be swapped in operation on cameras to achieve an uninterrupted 1:1 power supply equivalent to a standard V-Mount battery.

Fast Charging with 50 W/3 A

The PB-M146S can be charged with all standard V-Mount chargers and D chargers.

We recommend the following chargers:

• S-3822S, portable charger with 2 simultaneous channels
• Charges 2x PB-M146S: approximately 3 hours and 45 minutes
• PC-U130B2, ultra-portable charger with two D sockets
• Charges 1x PB-M146S: approximately 3 hours and 45 minutes
• Charges 2x PB-M146S: approximately 6 hours

Internal Wireless Technology

The PB-M146S is equipped with innovative internal "Wire-Free" technology. All cells, the D connector, the USB connector, and the operating indicators are directly soldered to the circuit board without connection cables, effectively reducing internal resistance and making the circuit stable, safe, and reliable.
