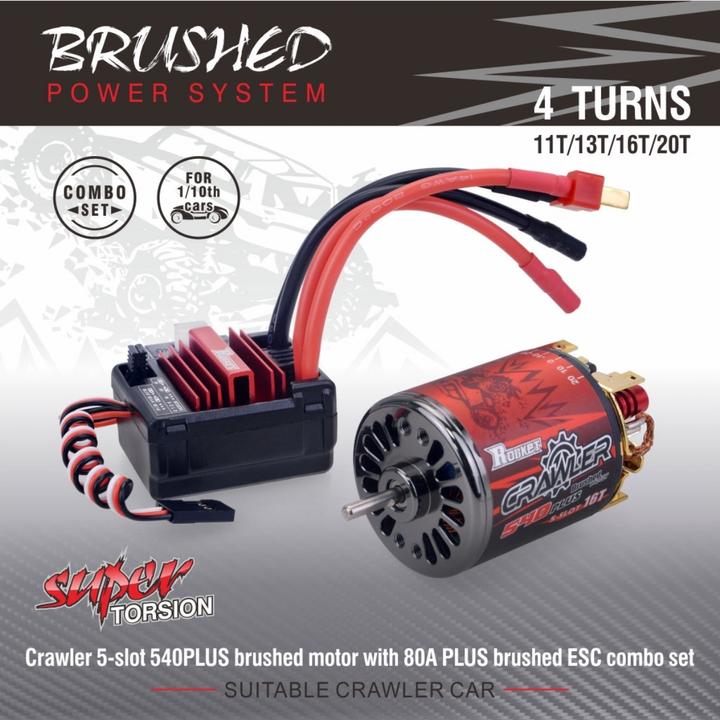

Surpass Hobby Surpass Combo 540-PLUS 4 Poles 5-slots auto hold 13T + 80A-PLUS top-level brushed ECS

Ratings
Delivered between Thu, 3.7. and Fri, 4.7.
Only 4 pieces in stock at supplier
free shipping

Product details

The combination of the Surpass variator and the 540 motor with 5 slots and high torque is ideal for enhancing the performance of crawlers.

New series of 540 motors with 5 slots, high torque, and low RPM from Surpass Hobby.

These motors feature a rotor with 5 slots instead of the usual 3 slots. They operate at a lower RPM and provide higher torque compared to 3-slot motors with the same RPM. Highly recommended for crawlers and other applications where torque is prioritized over speed.

Features:

The world's latest 4-pole magnet with high Gauss intensity.
Super large, slanted 5-slot rotor with windings made of high-purity copper.
24K gold-plated solder tabs with low internal resistance.
PCB capacitor to prevent interference.
The 16T 5-slot motor is a 1500kv motor and corresponds to a standard motor of approximately 40T.
The 20T 5-slot motor is a 1200kv motor and corresponds to a standard motor of approximately 50T.

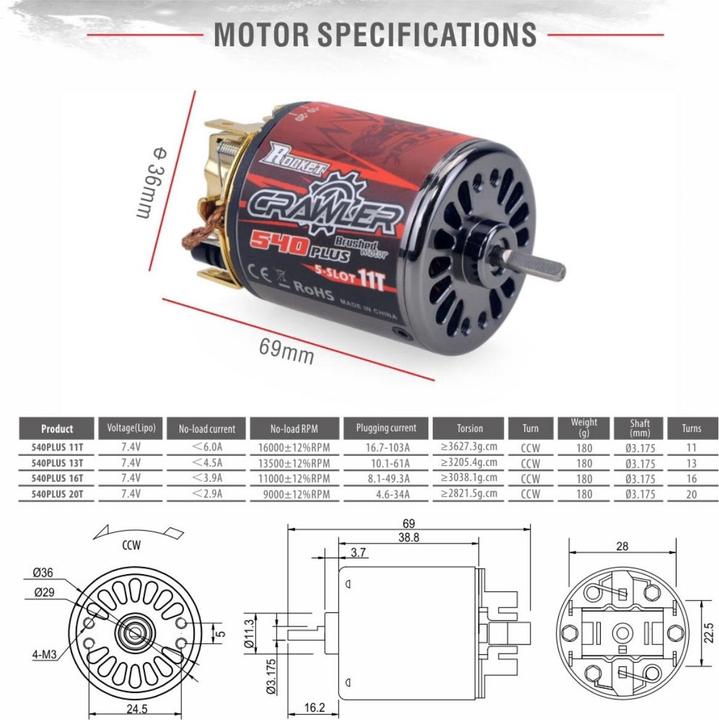

Specifications:

Size 540
5 slots
11-20T
Shaft length: 12 mm
Shaft diameter: 3.17 mm.

Key specifications

Wavelength
12 mm
shaft diameters
3.17 mm
Max. Speed
13500 rpm
Item number
13443603

General information

Manufacturer
Surpass Hobby
Category
RC motors
Manufacturer no.
SP-054004-13
Release date
17.7.2020

Engine properties

RC Electric motor type
Brushless electric motor
Motor version
Car motor
Wavelength
12 mm
shaft diameters
3.17 mm
Power consumption
61 A
mounting
Ball bearings
Max. Speed
13500 rpm

Speed controller features

Speed controller type
Brushless
usableness
Motor

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Length
6.90 cm
Diameter
36 mm
Weight
180 g

Package dimensions

Length
13.80 cm
Width
10.90 cm
Height
4.50 cm
Weight
329 g
