StarTech Dual 4K 60Hz Monitor Thunderbolt™ 3 Docking Station - PCIe M.2 and SD Card Reader
Thunderbolt, USB-A, USB-C, 1 Ports5 items in stock at supplier
Product details

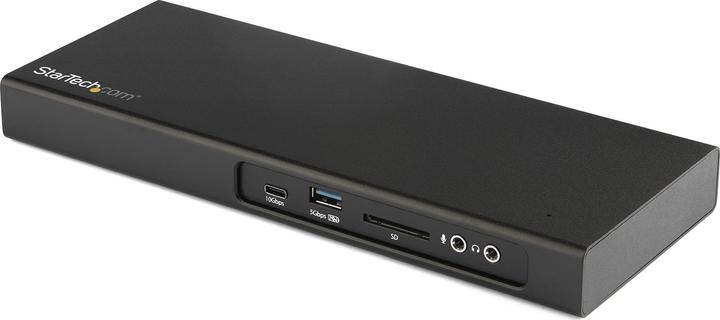

This compact Thunderbolt 3 dock boosts productivity by turning your Thunderbolt 3 MacBook Pro or Windows laptop into a dual 4K workstation with up to 40 Gbps throughput. The high-performance dock features a PCIe M.2 SSD slot for expanded data storage, three USB ports, an SD card reader, a Gigabit Ethernet port, a downstream Thunderbolt 3 port for daisy-chaining, and 85W of Power Delivery.
Create a dual 4K 60 Hz workstation. The dual-4K docking station is great for Ultra HD tasks and supports 4K resolution on two monitors: one DisplayPort and one Thunderbolt 3 USB-C display (4096 x 2160p at 60 Hz) (may require USB-C to DP cable or USB-C video adapter). Connect a single 5K monitor at 60 Hz.

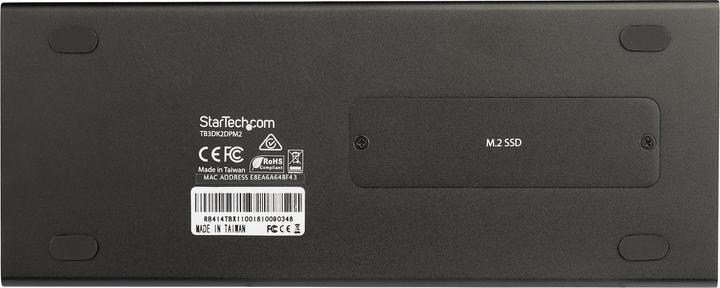

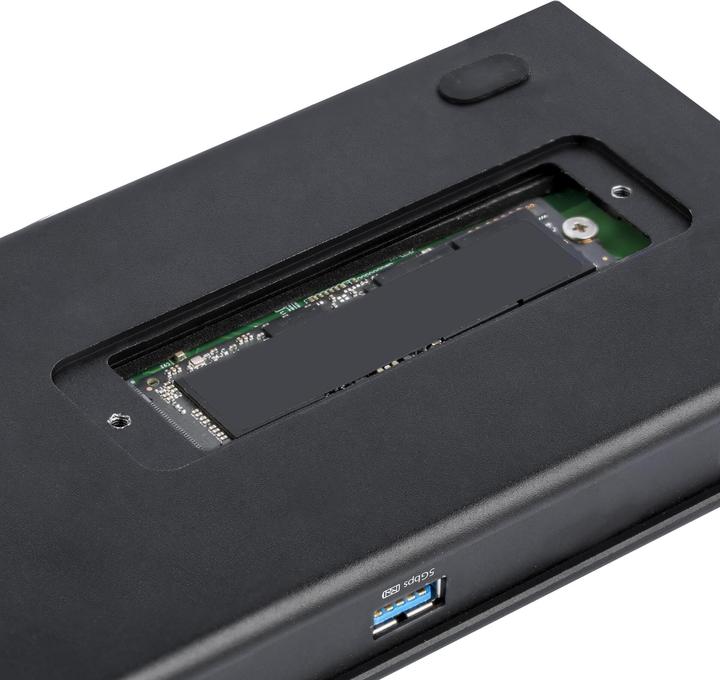

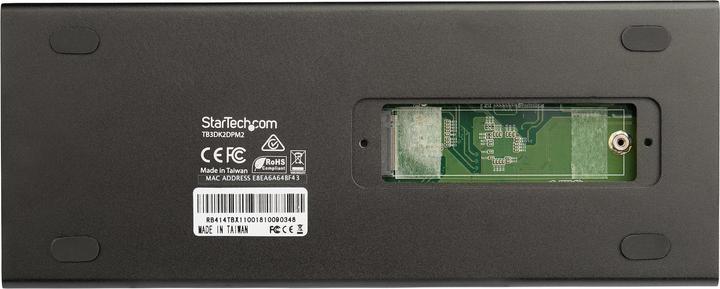

Add data storage. The PCIe M.2 SSD enclosure built into the Thunderbolt 3 dock supports transfer speeds of up to 1500 MB/s with an additional PCIe M.2 SSD for ultra-fast data access, expanded storage, and application caching and storage.

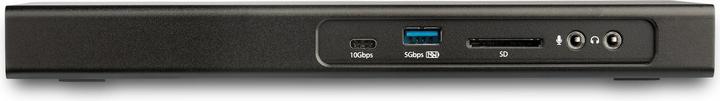

Fast SD card access. Transfer photos or videos from your SD cards to your Thunderbolt 3 laptop. The docking station's SD slot supports SD 4.0 and UHS-II with transfer speeds of up to 270 MB/s.

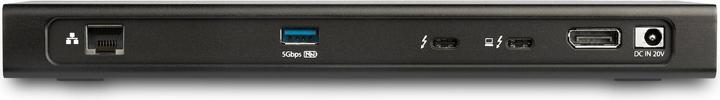

Connect your devices. Connect peripherals with three USB ports: one USB-C port (10G) with up to 3A and two USB-A ports (5G) with fast charging and syncing. The Gigabit Ethernet port (with PXE boot and WoL support) provides reliable wired network access.
85W Power Delivery. With a single cable, the Thunderbolt 3 dock provides up to 85W of power delivery.
The TAA-compliant TB3DK2DPM2 is offered by StarTech.com with a 3-year warranty and free lifetime technical support.
Max. Digital Resolutions: Two 4K displays - DisplayPort and Thunderbolt 3 USB-C - 4096 x 2160p/3840 x 2160p at 60 Hz. Single 4K display - DisplayPort and Thunderbolt 3 USB-C - 4096 x 2160p/3840 x 2160p at 60 Hz. Single 5K display (5120 x 2880p) (via Thunderbolt 3 USB-C port).
Type | Docking stations |
Main connection | Thunderbolt, USB-A, USB-C |
Exact USB ports | USB-A 3.0 (1x) |
Video connections | DisplayPort (1x) |
Network connections | RJ45 (1x) |
Audio Connections | Jack 3.5mm (2x) |
Operating system compatibility | Mac OS, Windows |
Item number | 12400957 |
Manufacturer | StarTech |
Category | Docking stations + USB hubs |
Manufacturer no. | TB3DK2DPM2 |
Release date | 3.12.2019 |
Colour | Black |
Type | Docking stations |
Number of ports | 1 Ports |
Cable length | 0.50 m |
Max. connected monitors | 2 x |
Equipment + functions | Integrated data carrier, Notebook charging function |
Compatible brands | Universal |
Operating system compatibility | Mac OS, Windows |
Main connection | Thunderbolt, USB-A, USB-C |
USB ports | USB-A, USB-C |
Exact USB ports | USB-A 3.0 (1x) |
Video connections | DisplayPort (1x) |
DisplayPort version | 1.2 |
Network connections | RJ45 (1x) |
Audio Connections | Jack 3.5mm (2x) |
Disk type | SSD |
Max. port speed | 1000 Mbit/s |
Charging power | 85 W |
Country of origin | China |
CO₂-Emission | |
Climate contribution |

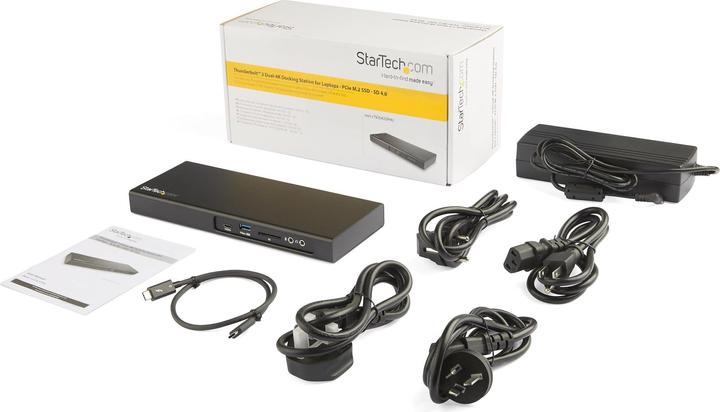

Scope of delivery | Power supply, Thunderbolt Cable |
Length | 23.90 cm |
Width | 9.50 cm |
Height | 2.50 cm |
Weight | 780 g |
