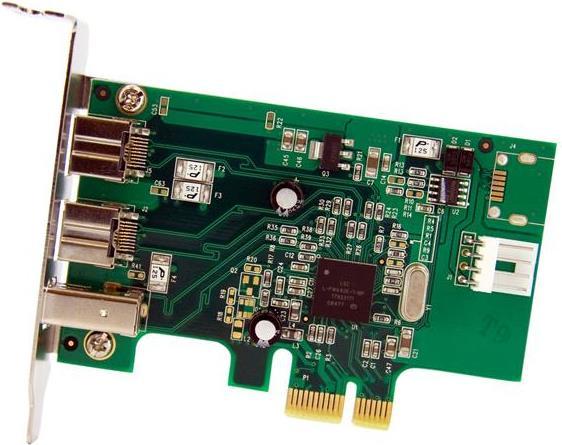

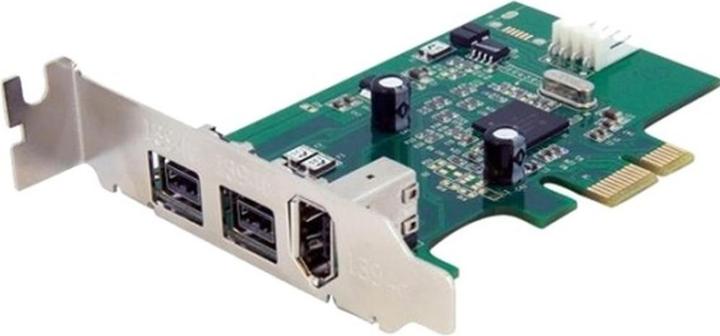

StarTech 3 Port Low Profile PCIe FireWire Adapter

Delivered between Tue, 6.5. and Wed, 7.5.
6 items in stock at supplier

Product details

PCI Express FireWire card adapter with 3 ports. The StarTech 3-Port PCI Express FireWire adapter card can be installed in a PCI Express slot by adding two IEEE1394b ports and one IEEE1394a port. It offers broad compatibility with a variety of FireWire devices, such as DV camcorders, external hard drives, and digital cameras. Two 9-pin FireWire 800 ports provide transfer rates of up to 800 Mbps, while a 6-pin FireWire 400 port allows for transfer rates of up to 400 Mbps. The adapter features a native PCI Express chipset integrated without a bridge chip. A mounting bracket for flat or low-profile installation is included. The internal power connector supplies power to high-performance FireWire devices. The adapter complies with IEEE 1394b and is backward compatible with the IEEE 1394a - 2000 and 1394 - 1995 standards. It supports plug-and-play and hot-swap functionality.

Key specifications

Item number
9908790

General information

Manufacturer
StarTech
Category
Controller cards
Manufacturer no.
PEX1394B3LP
Release date
16.10.2018

Controller properties

Peripheral connections
FireWire 400 (1x)FireWire 800 (2x)
Expansion card form factor
Low profile

Internal interfaces

Internal connection options
FireWire 400 (1x)FireWire 800 (2x)
Expansion slot
PCI Express x1 (1x)

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Weight
43 g
Width
58 mm
Length
90 mm

Package dimensions

Length
20.80 cm
Width
14.70 cm
Height
4 cm
Weight
214 g
