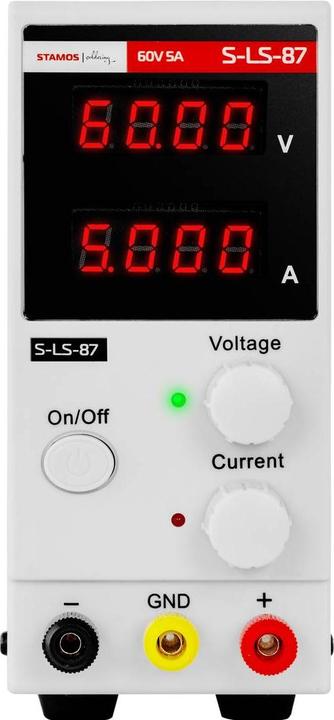

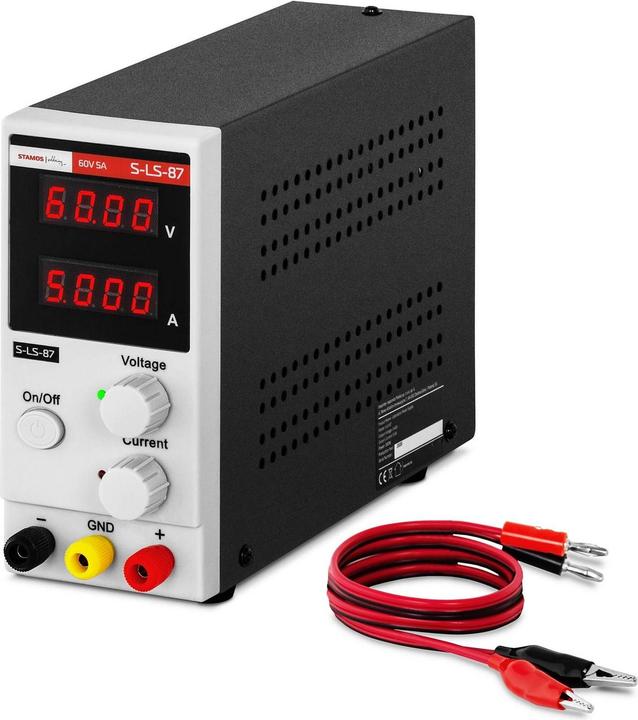

Stamos Laboratory Power Supply - 0-60 V - 0-5 A DC - 300 W
Product details
Powerful laboratory power supply up to 300 W
The laboratory power supply S-LS-87 is specialized for supplying external devices with direct current, with both current and voltage adjustable individually. Thanks to the large LED display, you can conveniently read and monitor the set values of output voltage and current at any time.
The user-friendly laboratory power supply is very easy and comfortable to operate via the rotary knobs. The knobs allow for both coarse and fine adjustment of the values, ensuring precise settings for the desired current from 0 to 60 V DC and 0 to 5 A.
With this laboratory power supply, you receive a device with a high safety standard: it is equipped with overload protection (OPP) and a special over-temperature protection (OTP), which automatically activates a built-in fan as soon as the maximum temperature is exceeded. These precautions ensure safe operation of the power supply, even with intensive and continuous use. Non-slip rubber feet also provide a secure stand for the device.
Technical details:
- Output voltage: 0 to 60 V
- Output current: 0 to 5 A
- Output power: 300 W
- Residual ripple: 30 mV / 20 mA
- Line regulation: CV 20 mV / CC 20 mA
- Load regulation: CV 50 mV / CC 20 mA
- Connections: Output sockets, mains connection socket, ground output terminal
- Display: LED
- Protection: OTP, OPP
- Fuse: 5 A
- Cooling: Fan, temperature-controlled
- Length of power cable: 1.1 m
Delivery includes:
Laboratory power supply S-LS-87, user manual.
Output voltage | 60 V |
Power | 300 W |
Electric current output | 5 A |
Item number | 36634201 |
Manufacturer | Stamos |
Category | Lab power supply |
Manufacturer no. | S-LS-87 |
Release date | 22.6.2023 |
Colour | Black |
Display | Led display |
Output voltage | 60 V |
Electric current output | 5 A |
Power | 300 W |
Manufacturer Type | S-LS-87 |
Power supply | Electrical connection |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Laboratory power supply S-LS-87, Manual |
Length | 217 mm |
Width | 71 mm |
Height | 160 mm |
Weight | 1500 g |
Ingredients | Powerful laboratory power supply unit up to 300 W_x000D_The S-LS-87 laboratory power supply unit specialises in supplying external devices with direct current, whereby the current and current voltage can be set individually. Thanks to the large LED display, you can easily read and check the set values for the output voltage and current at any time_x000D_The user-friendly laboratory power supply unit can be controlled very easily and conveniently using the rotary knobs. The rotary knobs allow both coarse and fine adjustment of the values and thus guarantee an exact setting option for the desired current from 0 to 60 V DC and 0 to 5 A._x000D_The laboratory power supply provides you with equipment with a high safety standard: The device is equipped with overload protection (OPP) and special overheating protection (OTP), which automatically activates an integrated fan as soon as the maximum temperature is exceeded. These precautions guarantee safe operation of the power supply unit, even during intensive and prolonged use. Non-slip rubber feet also ensure that the device stands securely._x000D_Technical details_x000D_Output voltage: 0 to 60 V Output current: 0 to 5 AA Output power: 300 WResidual ripple: 30 mV / 20 mANetwork regulation: CV 20 mV / CC 20 mA Load regulation: CV 50 mV / CC 20 mA Connections: Output sockets, mains connection socket, earth output terminalDisplay: LEDProtection: OTP, OPP fuse: 5 ACCooling: fan, temperature-controlledLength of mains cable: 1.1 m_x000D_Scope of delivery_x000D_Lab power supply S-LS-87, operating instructions. |
