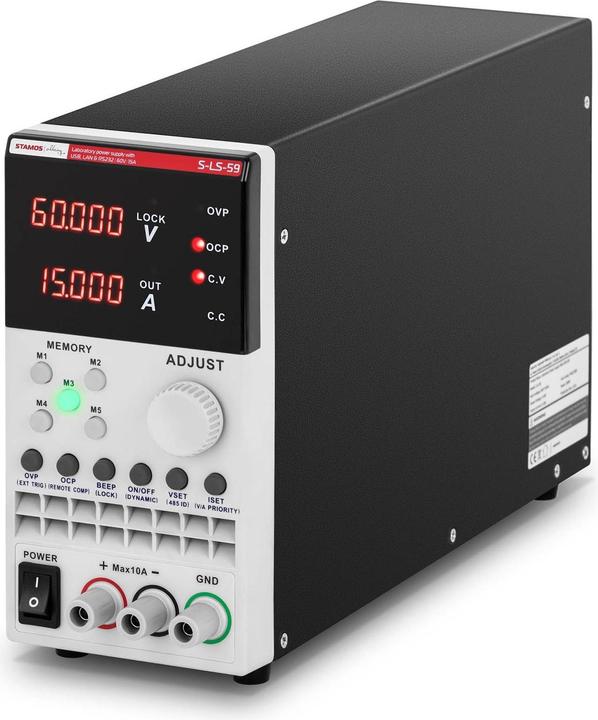

Stamos Bench Power Supply - 0-60 V - 0-15 A DC - 300 W - USB/LAN/RS-232
Product details
Bench Power Supply - 0-60 V - 0-15 A DC - 300 W - USB/LAN/RS-232 The bench power supply S-LS-59 reliably provides direct current to external devices, with individually-adjustable current and voltage. Technical Details Model S-LS-58Voltage / Frequency 230 V / 50 HzPower 300 WOutput voltage 0 to 60 V Output current 0 to 15 A DCMax. rated current 15.5 ARipple current ≤ 3 mArmsWell voltage ≤ 2 mVrmsInput regulation voltage ≤ 0.01 % + 3 mVInput regulation current ≤ 0.01 % + 3 mALoad control voltage ≤ 0.01 % + 2mVLoad control current ≤ 0.1 % + 5mADisplay LEDVoltage display 5 digitsCurrent display 5 digitsMemory 5 memory spacesDisplay precision ≤ 0.5 % + 3 mVStability, voltage ≤ 0.5 % + 3 mVStability, current ≤ 0.5 % + 5 mARecovery time 100 usResolution, voltage / current ≤ 0.01 % + 2 mV / ≤ 0.01 % + 5 mADisplay resolution voltage / current 1 mV / 1 mAPC interfaces USB / RS-232 / LANOperating temperature 0 to 40 °CStorage temperature -10 to 70 °CRelative working humidity < 80 %Relative storage humidity < 70 %Temperature coefficient [ppm] ≤ 150 ppmProtection OCP, OVPFuse 4 A / 250 VInsulation resistance 500 MΩAdjustable DC voltage 0 to 30 VAdjustable current 0 to 30 ACoefficient input regulation CV ≤ 0.01 % + 3 mVCoefficient input regulation Under load CV ≤ 0.01 % + 3 mVResolution 10mV / 1mAResponse time for rising/falling voltage/current intensity (at 10% load) 50 msDevice cooling FanLength, power cord 1.2 m Delivery Contents Bench power supply S-LS-59Software CDPower cableUSB cableRS-232 cableTest lead 30 AInstruction manual.
Output voltage | 60 V |
Power | 300 W |
Electric current output | 15 A |
Item number | 36983595 |
Manufacturer | Stamos |
Category | Lab power supply |
Manufacturer no. | S-LS-59 |
Release date | 7.7.2023 |
Colour | Black |
Display | Led display |
Output voltage | 60 V |
Electric current output | 15 A |
Power | 300 W |
Manufacturer Type | S-LS-59 |
Power supply | Electrical connection |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |

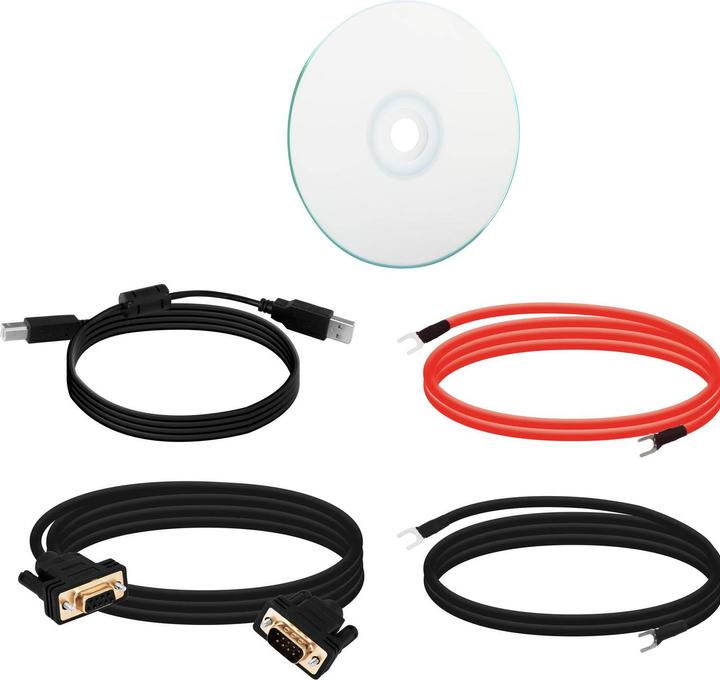

Scope of delivery | Laboratory power supply S-LS-59, Manual, Power cable, RS232 cable, Software CD, Test cable 30 A, USB cable |
Additionally required (not included) | RS232 cable, Test cable 30 A, USB cable |
Length | 340 mm |
Width | 91 mm |
Height | 184 mm |
Weight | 4050 g |
Ingredients | Powerful laboratory power supply with 5 memory slots and PC interfacesTechnical detailsVoltage / frequency: 230 V / 50 HzPower: 300 WOutput voltage: 0 to 60 VOutput current: 0 to 15 A DCNominal current: max. 15.5 ARipple current: ≤ 3 mArmsBrunning voltage: ≤ 2 mVrmsVoltage input regulation: ≤ 0.01 % + 3 mVCurrent input regulation: ≤ 0.01 % + 3 mVVoltage load regulation: ≤ 0.01 % + 2 mVCurrent load regulation: ≤ 0.1 % + 5 mADisplay: LEDVoltage display: 5 digitsCurrent display: 5 digitsMemory: 5 memory locationsDisplay accuracy: ≤ 0.5 % + 3 mVVoltage stability: ≤ 0.5 % + 3 mVCurrent stability: ≤ 0.5 % + 5 mARecovery time: 100 usVoltage / current resolution: ≤ 0.01 % + 2 mV / ≤ 0.01 % + 5 mAAreading resolution voltage / current: 1 mV / 1 mAPC Interfaces: USB / RS232 / LANOperating temperature: 0 to 40 °CStorage temperature: -10 to 70 °CRelative humidity operating: < 80 %Relative humidity storage: < 70 %Temperature coefficient [ppm]: ≤ 150 ppmProtection: OCP, OVPfuse: 4 A / 250 VIsolation resistance: 500 MΩAdjustable DC voltage: 0 to 30 VEAdjustable current: 0 to 30 AKoefficient input regulation: ≤ 0.01 % + 2 mVInput regulation coefficient under load: ≤ 0.01 % + 2 mVAccuracy (25°C ±5°C): ≤ 0.5 % + 3 mV; ≤ 0.5 % + 3 mA Response time with falling/rising current/voltage (at 10 % load): 50 msDevice cooling: FanLength of mains cable: 1.2 mScope of deliveryLab power supply S-LS-59, software CD, power cable, USB cable, RS232 cable, test cable 30 A, operating instructions. |
