Stahlwerk fume extractor 300 watt extraction system fume absorber soldering fume extractor soldering welding

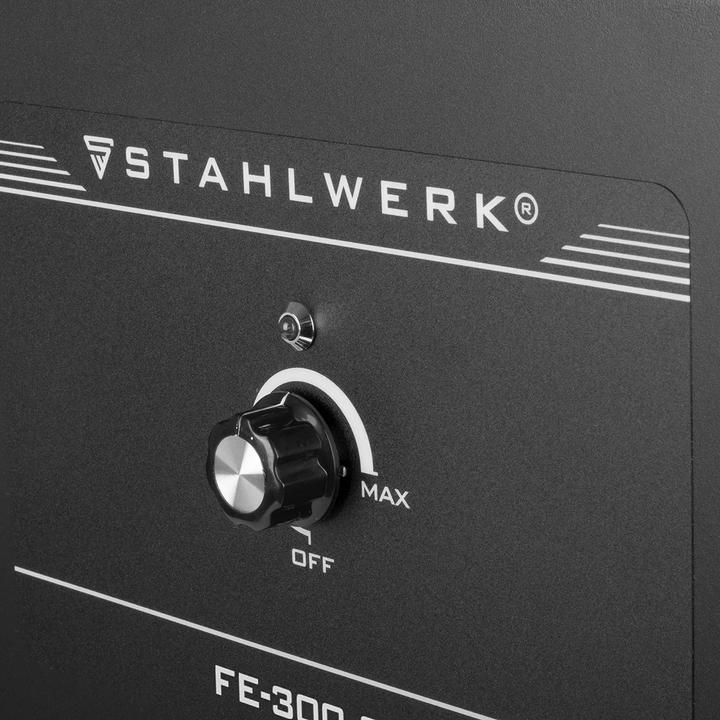

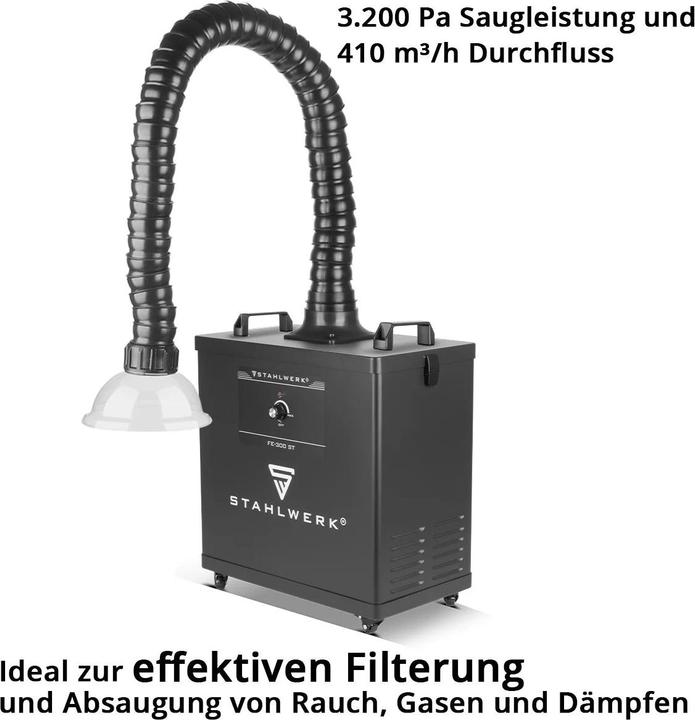

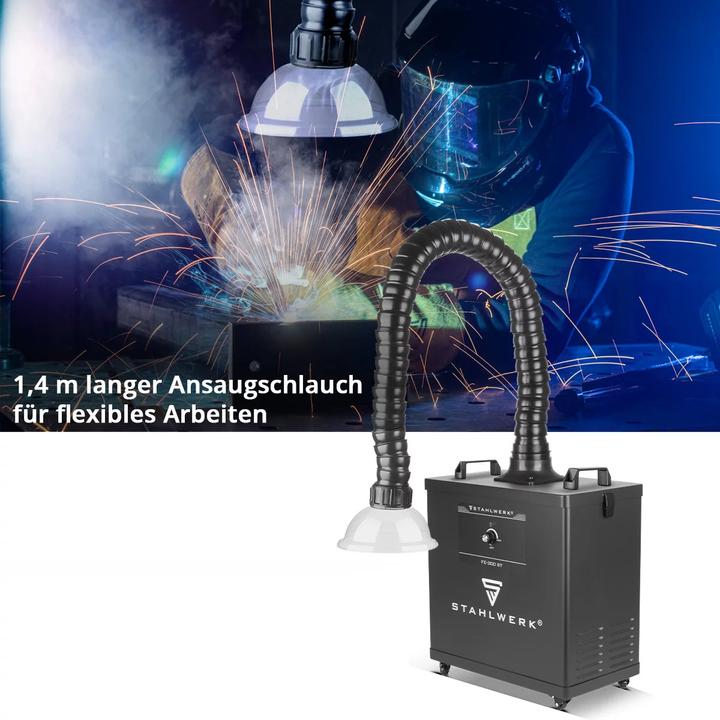

The STAHLWERK Smoke Extraction FE-300 ST is ideally suited for the effective extraction and filtration of smoke, gases, and vapors, such as those generated during soldering, welding, or plasma cutting, with a power output of 300 watts. Equipped with an innovative 3-stage filter system with strong suction power, this universal extraction unit achieves an efficiency of 99.97 percent in absorption and filtration. This allows the cleaned air to be redirected back into the indoor environment. The smoke and solder extraction occurs with a suction power or maximum negative pressure of 3,200 Pascal and a systemic flow rate of 410 m³/h. The smoke extractor operates particularly quietly with a noise emission of under 60 dB. The intensity of the airflow can be continuously adjusted according to individual on-site requirements. Thanks to the 1.4-meter-long suction hose, the smoke extraction hood can be flexibly positioned.

Technical Data

Model: STAHLWERK Smoke Extraction FE-300 ST
Input Voltage: AC 230V / 50 Hz
Maximum Power: 300 W
Filtration Efficiency: 0.3 µm, 99.97 %
Noise Emission: under 60 dB
Max. No-load Speed: 5,000 RPM
Negative Pressure: 3,200 Pa
Length of Suction Hose: 1.4 m
Air Inlet Interface: Ø 75 mm
Systemic Flow Rate: 410 m³/h
Filter Class: H13 HEPA Filter according to EN 1822
Dimensions of Main Unit: 430 x 250 x 457 mm
Weight: 16 kg
WEEE Reg. No. DE: 85577200

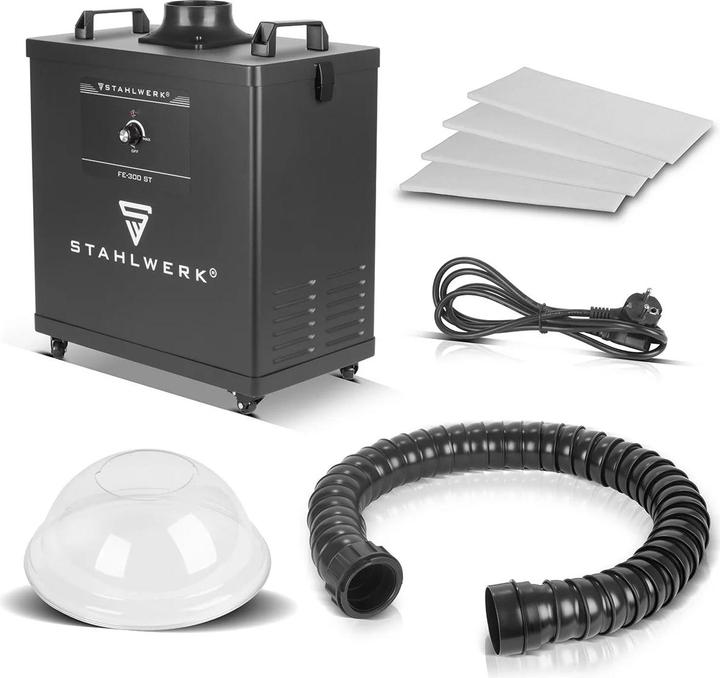

Scope of Delivery

1 x STAHLWERK Smoke Extraction FE-300 ST
4 x Replacement Filters

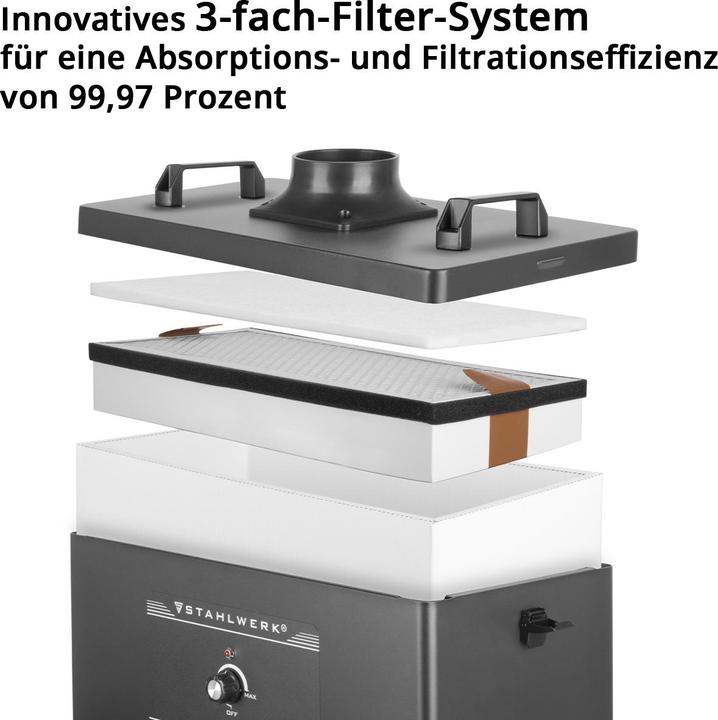

1 x 3-stage Filter System (Pre-, Hepa-, Activated Carbon Filter) pre-assembled in the device
1 x Flexible Suction Hose (1.4 m)
1 x Suction Bell
1 x Cold Device Cable with Schuko Plug 2 m.
