Spelsberg WKE 4 - Duo 3 x 10²

Delivered between Wed, 25.6. and Fri, 4.7.
Supplied by
Conrad CH

Product details

The Spelsberg WKE 4 - Duo 3 x 10² is a high-quality cable junction and connection box designed for use in demanding electrical applications. With an IP66 protection rating, it offers effective protection against dust and water, making it ideal for use in harsh environments. The box is certified according to EN 60670 and IEC 62208 and ensures electrical functionality retention from E30 to E90 in accordance with DIN 4102 Part 12. The housing is made of halogen-free special thermoplastic, known for its high temperature resistance. The terminals are made of high-temperature resistant special ceramics and provide flexible positioning to meet individual requirements. The WKE 4 - Duo is designed for connecting 3-pole conductors with cross-sections from 1 to 10 mm² and allows for a high number of connectable conductors per pole, highlighting the versatility and efficiency of the product.

  • IP66 protection rating for optimal protection against dust and water
  • Certified according to EN 60670 and IEC 62208
  • Electrical functionality retention E30-E90 according to DIN 4102 Part 12
  • Halogen-free housing made of special thermoplastic
  • Flexible terminal holder for individual positioning.

Key specifications

Item number
22933349

General information

Manufacturer
Spelsberg
Category
Electronics supplies + Casing
Manufacturer no.
86750001
Release date
12.10.2022

Colour

Colour
Orange

Compatibility

Compatible hardware
Various

Electronics accessory properties

Manufacturer Type
WKE 4-Duo 3 x 10qmm

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 x
Scope of delivery

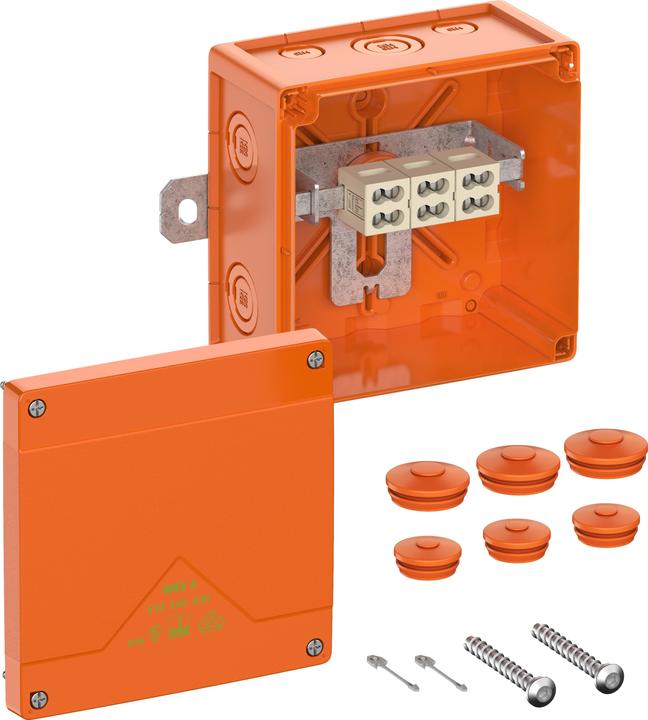

3 double membrane sockets IP66 M25 sealing range 9-17mm3 double membrane sockets IP66 M32 sealing range 13-21mmJunction boxLid loss protectionScrew anchor

Product dimensions

Length
150 mm
Width
150 mm
Height
85 mm
