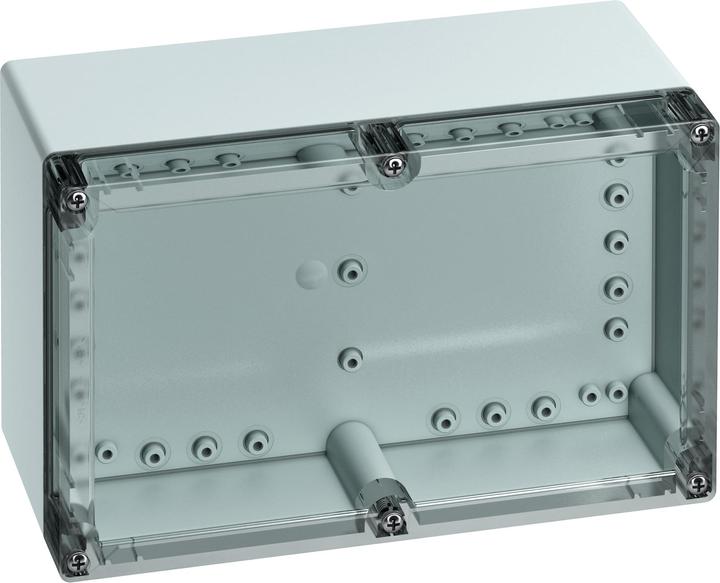

Spelsberg TG IP67 enclosure, ABS, clear lid

Housing material: ABS
External dimensions: 252 x 162 x 120 mm
External length: 252 mm
External width: 162 mm
External height: 120 mm
IP protection class: IP66, IP67
Color: Gray
Cover color: Gray
Series: TG
Number of cutouts: 0
Shielded: No

ABS housing IP67, Series TG. The TG series from Spelsberg is an industrial ABS housing that provides quick, aesthetic protection for electrical applications and is equipped with a recessed cover. These IP67 housings are resistant to most harsh environmental conditions, making them suitable for various indoor and outdoor applications.

Features and benefits:

• High-quality design with a stylish, glossy appearance
• Gray housing base (similar to RAL7035) with either a gray or transparent cover
• Time-saving quick closure system
• Recess in the cover allows for the attachment of design films or membrane keypads
• Smooth side walls for increased flexibility
• Integrated cover holder
• Mounting notches in standard positions
• Mounting plate, DIN rail, internal hinge kit, and external fasteners available separately.

Typical applications:

• Cable management
• Traffic guidance
• IT/Server
• Solar power batteries
• Food and beverage industry
• Telecommunications industry

(IP) Protection against ingress and what it means: The IP protection class classifies the degree of protection against the ingress of solid objects (including body parts such as hands and fingers), dust, accidental contact, and water into electrical enclosures.

Frequently asked questions:
Can the housing be used outdoors? This housing with an IP67 protection class is completely waterproof and weatherproof.
What is included in the delivery? Non-loosable stainless steel cover screws and a polyurethane gasket as standard.
