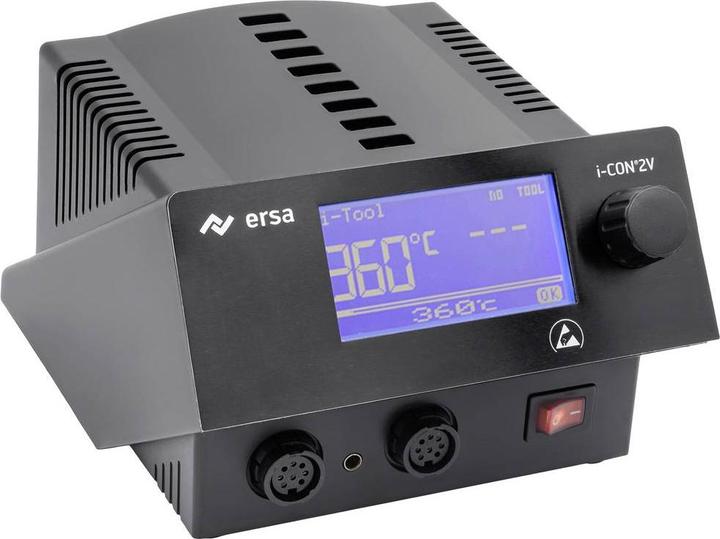

Soldering station supply unit 150W 150 - 450°C

The i-CON 2V C MK2 electronics station with interface for the ERSA solder fume extraction system has been developed to meet the demands of higher working temperatures and increasingly smaller process windows of lead-free soldering processes. The integrated interface automatically switches off the optional fume extraction units EA 110 plus i, EA 55 i, EA 1, or EA 2 after the tools enter standby mode. The electronics station features two connections and can recognize six tools, including the extremely small, lightweight, ergonomic, and powerful soldering iron i-TOOL MK2, as well as tools for desoldering SMD components or through-hole components. The i-CON MK2 series is, of course, anti-static.

Innovative technology – highlights at a glance:

• User-friendly "One-Touch" operation of the software with online help and easy menu navigation via i-Op menu selection
• Large multifunction display
• Standby function
• Three energy power levels that regulate the heating element based on the required heat demand. At the highest setting, the system delivers maximum power, while at the low setting, the power is strictly regulated with no overshoot allowed.
• Process window and alarm visually and audibly inform the operator if the temperature exceeds the preselected temperature process window.
• With the i-Set TOOL option, additional i-CON 2V MK2 soldering stations can be automatically configured and locked. Station settings can be easily and quickly downloaded from one i-CON 2V MK2 to the i-Set TOOL like using a USB stick and uploaded to another station within five seconds. The power cable is not included.
