SmallRig Cage for Atomos Ninja Series CMA2209B

SmallRig Atomos Ninja V Cage

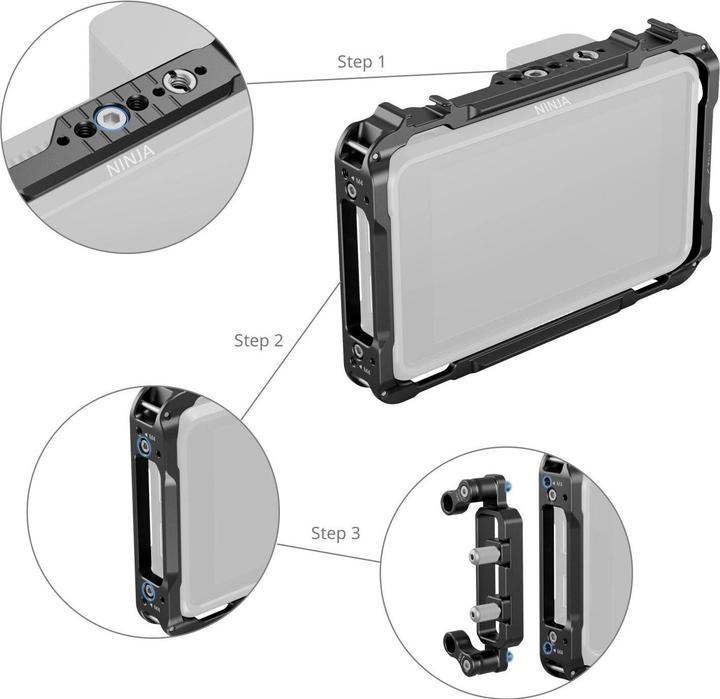

The SmallRig Cage for Atomos Ninja V 2209 was developed in collaboration with Atomos to provide additional protection for the monitor and create a range of industry-standard mounting points. The cage is attached to the monitor using a 1/4"-20 screw on the top and two M3 screws on the left side. It features multiple 1/4"-20 and 3/8"-16 threads on the top and bottom, as well as an Arri locating option on the bottom. NATO rails are included both on the top and bottom to allow for use with a variety of SmallRig mounts, such as the SmallRig Ball Head Magic Arm 2071 or 2072 for quick release.

The cage includes a single HDMI cable clamp that works with a variety of cables and is ideal for the AtomFlex 4K 60p cable. For the HDMI connection, the SmallRig HDMI cable clamp 1693 can be selected. To ensure compatibility with the Atomos Master Caddy II, the cage features drive locks that integrate the additional size of standard 2.5" drives into the cage's form factor. It provides elevated mounting points on the top and bottom for use with a hand strap and for adjusting the Atomos Ninja V sunhood frame.

Key Features:
1. Custom cage for Atomos Ninja V
2. NATO rails on top and bottom

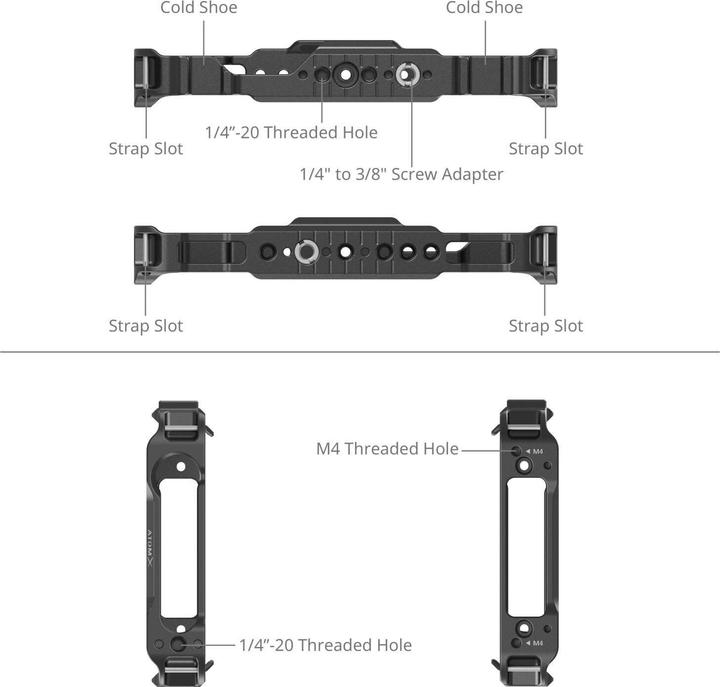

3. 1/4"-20, 3/8"-16, and Arri locating option
4. HDMI cable clamp included

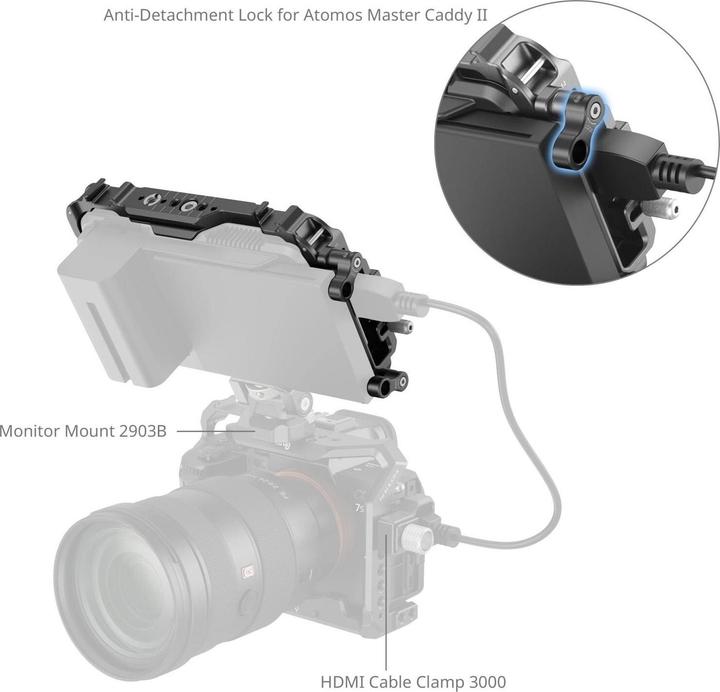

5. Drive locks for Atomos Master Caddy II

Compatibility:
Atomos Ninja V 5" 4K HDMI Recording Monitor

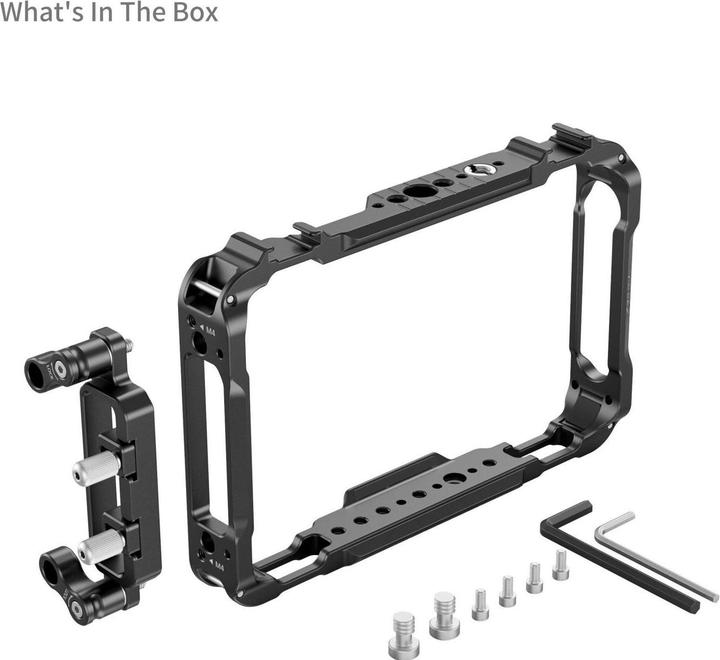

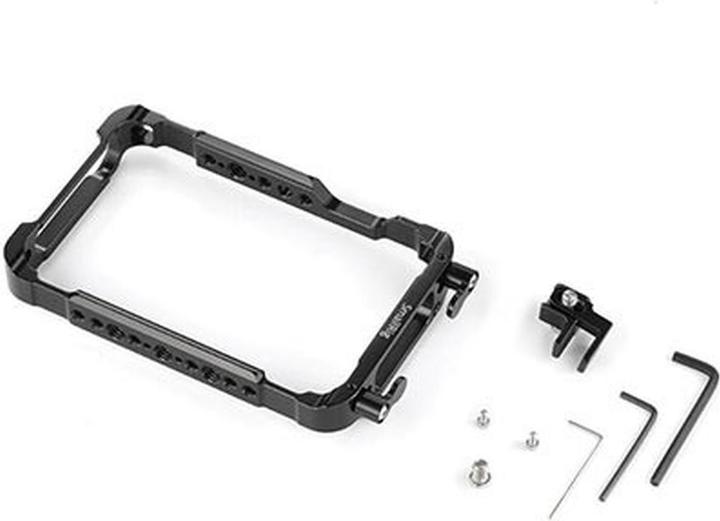

Package Includes:
1 x Cage
1 x HDMI Clamp 1693
2 x 1/4 screws
4 x M3 screws
3 x Hex keys

Product Dimensions: 177 x 107 x 24.7 mm
Package Dimensions: 200 x 140 x 40 mm
Net Weight: 196 g
Package Weight: 267 g
Material: Aluminum alloy.
