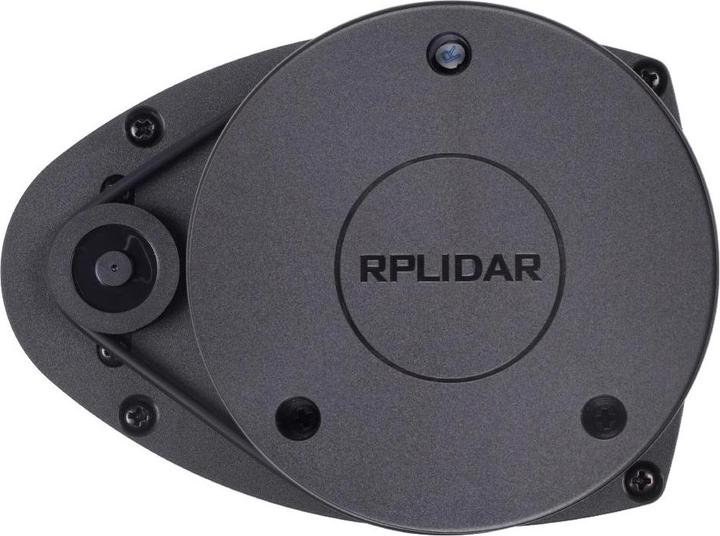

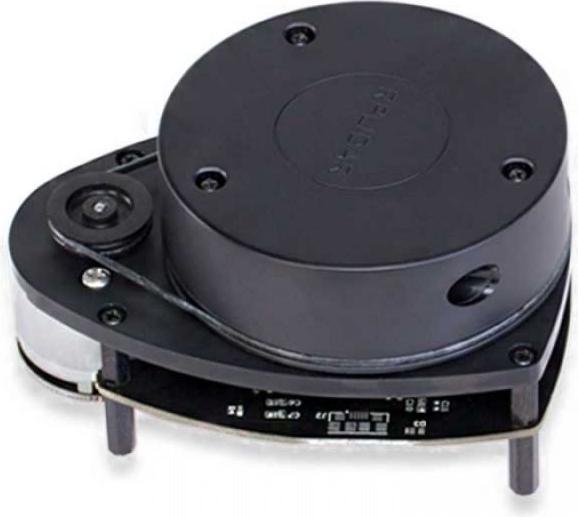

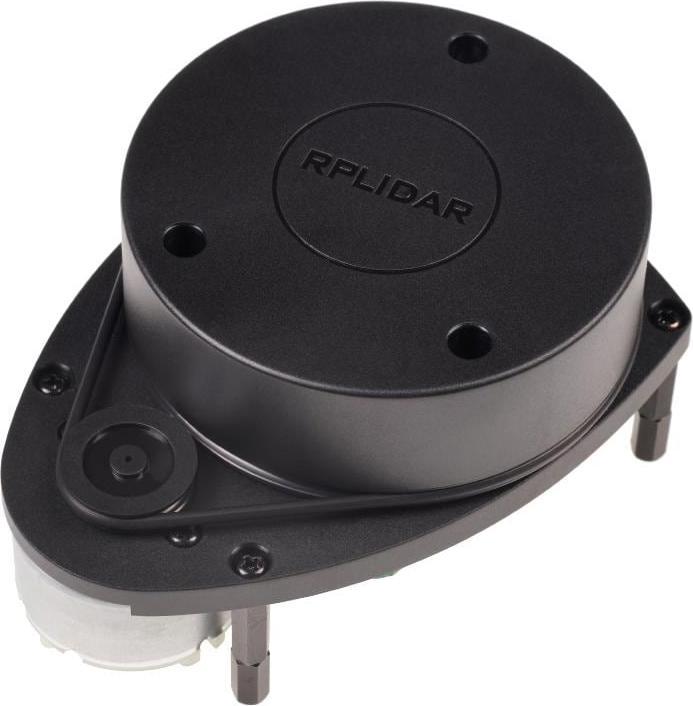

Slamtec RPLIDAR A1M8 360° 12 m

The RPLidar A1M8 from SLAMTEC is a very compact 360° LiDAR with a measurement range of 0.15 to 12 m. Due to its USB/UART interface and low profile, this sensor is ideally suited for development platforms for exploring and developing SLAM, HRI, and navigation applications.

Included with the A1M8 LiDAR is a small USB-UART adapter board that converts the 8-bit protocol accordingly. Additionally, various ROS packages and Arduino libraries are available for easy integration and can be downloaded for free. If a suitable interface is not available, the data can be formatted and processed according to the following scheme.

The datasheet, Arduino library, and ROS package are available in the product's download section.

Technical specifications:

Measurement range: 0.15 - 12 m
Sampling rate: 8000 measurements/sec
Tolerance: < 1% / 0.2 cm
Power supply: USB port
Weight: 170 g
Current consumption: 350 mA
Interfaces: USB/UART | 8 Bit & 1 Stop Bit

Scope of delivery:

RPLiDAR A1M8.
