Siemens Solid state relay single phase 4...30 VDC (3RF2130-1AA45)

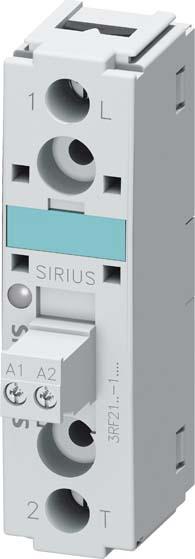

Siemens Digital Industry Semiconductor Relay 3RF2130-1AA45

Manufacturer: Siemens Digital Industry
Designation: Semiconductor Relay 22.5 mm, 30 A
Type: 3RF2130-1AA45
Rated Control Supply Voltage Us at DC: 4..30 V
Voltage Type for Actuation: DC
Operating Voltage: 48..600 V
Rated Operating Current Ie at AC-1: 30 A
Rated Operating Current Ie at AC-51: 30 A
Number of Phases: 1
Suitable for Rail Mounting: yes

Further Details:
Semiconductor relay, single-phase, 3RF2, width 22.5 mm, 30 A, 48-600 V / DC 4-30 V, screw connection, blocking voltage 1200 V. SIRIUS 3RF21 semiconductor relay for switching resistive and inductive loads, e.g., for heaters or valves in a filling plant. The devices switch wear-free and silently, making them ideal for noise-sensitive areas such as offices and hospitals. They are also extremely reliable at high switching frequencies. The compact design saves space on the cooling surface.

Additionally, the semiconductor relays can be easily expanded for various applications using the standardized function modules 3RF29 by simply snapping them on. The devices are globally approved, e.g., according to IEC and UL/CSA. The semiconductor relays are available as single-phase devices in two widths or as three-phase devices. They are offered for various power ratings and rated operating voltages. Designed for AC or DC actuation, they come with screw, spring-loaded, or ring terminal connections.

In addition to the function modules 3RF29, accessories such as control plugs and terminal covers are also available. Simple, efficient, always up to date - the SIRIUS system modular concept.
EAN: 4011209652590.
