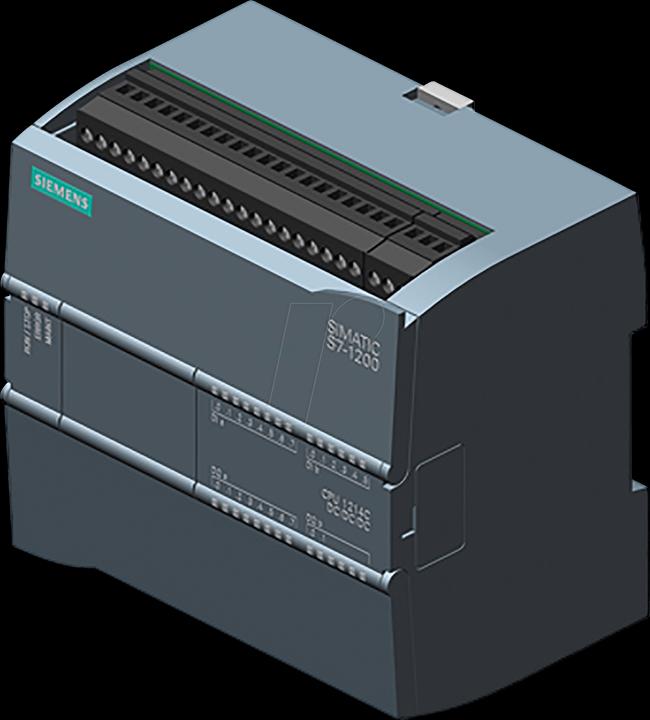

Siemens SIMATIC S7-1200 CPU 1214C, DC/DC/DC

For use with: SIMATIC S7-1200 series
Number of inputs/outputs: 24
Manufacturer series: S7-1200
Input type: Analog, digital
Voltage category: 24 V dc
Output type: Digital, transistor
Number of outputs: 10 (digital output, transistor output)
Network type: Ethernet
Communication interface type: Ethernet, Profinet, UDP
Program memory: 75 KB
Programmable interface: Profinet
Output current: 500 mA

S7-1200 - CPU 1214C. The SIMATIC S7-1200 system comes in five different models: CPU 1211C, CPU 1212C, CPU 1214C, CPU 1215C, and CPU 1217C, each of which can be precisely tailored to meet the requirements of your machines. A signal board can be added to the front of any CPU to expand digital or analog I/O without affecting the physical size of the controller. The SIMATIC S7-1200 CPU series 1214C is a compact high-performance CPU with 24 integrated inputs and outputs, integrated Ethernet interface, fast counter, basic PID controller, integrated real-time clock, alarm inputs, and removable connections on all modules. Expandable with: 1 signal board (SB) or 1 communication board (CB), 8 signal modules (SM), max. 3 communication modules (CM).
