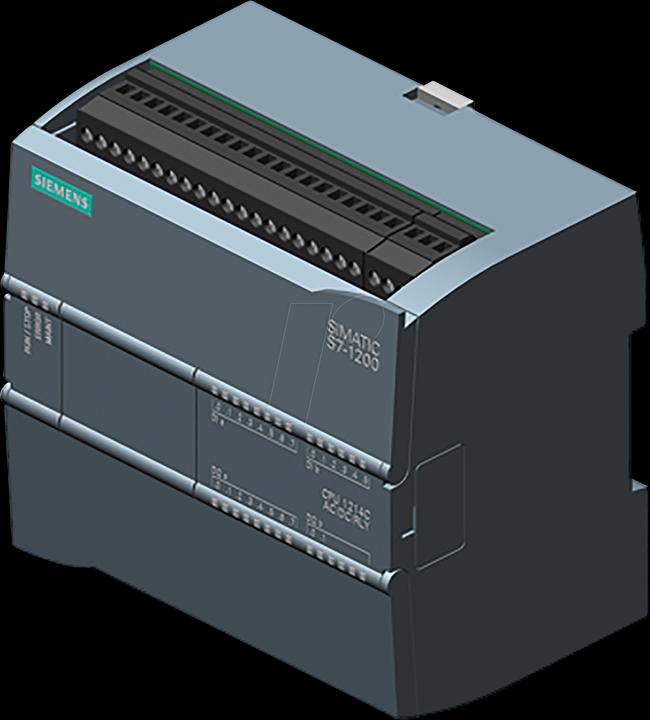

Siemens SIMATIC S7-1200 CPU 1214C, AC/DC/Relay

For use with the SIMATIC S7-1200 series. Number of inputs and outputs: 24. Manufacturer series: S7-1200. Input type: Analog, digital. Voltage category: 85 to 264 V AC. Output type: Digital, relay. Number of outputs: 10 (digital output, relay output). Network type: Ethernet. Communication interface type: Ethernet, Profinet, UDP. Program memory: 75 KB. Programmable interface: Profinet. Memory: 4 MB.

S7-1200 - CPU 1214C. The SIMATIC S7-1200 system comes in five different models: CPU 1211C, CPU 1212C, CPU 1214C, CPU 1215C, and CPU 1217C, each of which can be precisely expanded to meet the requirements of your machines. A signal board can be added to the front of any CPU to expand digital or analog I/O without affecting the physical size of the controller. SIMATIC S7-1200 CPU series 1214C: The compact high-performance CPU with 24 integrated inputs and outputs, integrated Ethernet interface, fast counter, basic PID controller, integrated real-time clock, alarm inputs, and detachable connections on all modules. Expandable with: 1 signal board (SB) or 1 communication board (CB), 8 signal modules (SM), a maximum of 3 communication modules (CM).
