Siemens Simatic

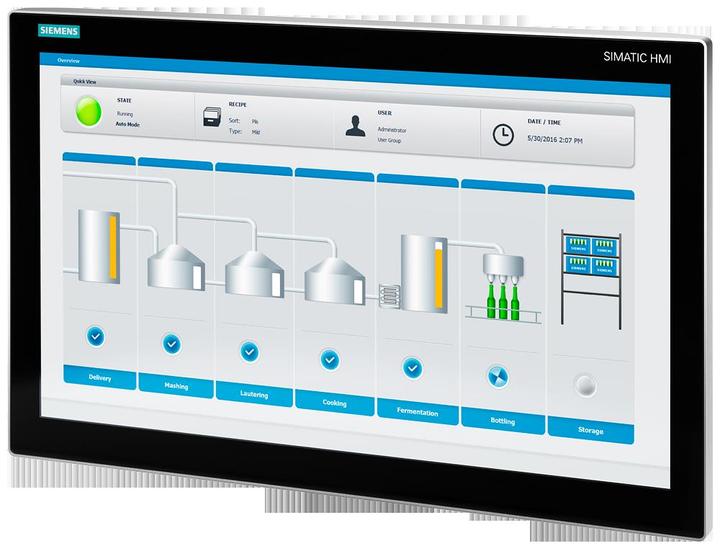

Siemens Dig.Industr. SIMATIC IFP2200 V2 6AV78634MA102NA0

Manufacturer: Siemens Dig.Industr.
Designation: SIMATIC IFP2200 V2
Type: 6AV78634MA102NA0
Supply voltage at DC: 19.2..28.8 V
Type of supply voltage: DC
With hardware interface video signal, analog: no
With hardware interface video signal, digital: yes
With hardware interface USB: yes
With hardware interface PS2: no
Display type: TFT
With color display: yes
Number of colors of the display: 16,777,216
Screen diagonal: 21.5 inches
Number of pixels, horizontal: 1920
Number of pixels, vertical: 1080
With On Screen Display: no
Integrated keyboard: no
With touchscreen: yes
Mouse cursor control integrated: yes
Protection class (IP), front: IP65
Operating temperature: 0..45 °C
Rail mounting possible: no
Wall/direct mounting possible: no
Front mounting possible: yes
Rack mounting possible: no
Suitable for safety functions: no
Width of the front: 529 mm
Height of the front: 331 mm
Installation depth: 63.4 mm

Additional details: SIMATIC IFP2200 V2 extended, 22 Multitouch display (16:9) with 1920x1080 pixel resolution, built-in device, for 24V DC, DisplayPort, up to 100m extendable HDBaseT, rear USB, Neutral Design.

There are many application areas for SIMATIC Industrial Flat Panels in the industry, whether as a desktop device for maintenance, as a built-in device for control panels, or as a PC-based visualization and control solution that is to be installed spatially separated from the industrial PC or server. SIMATIC industrial monitors and thin clients always provide you with the optimal solution, whether as a standalone product or with multiple operator stations.

EAN: 4047618108540.
