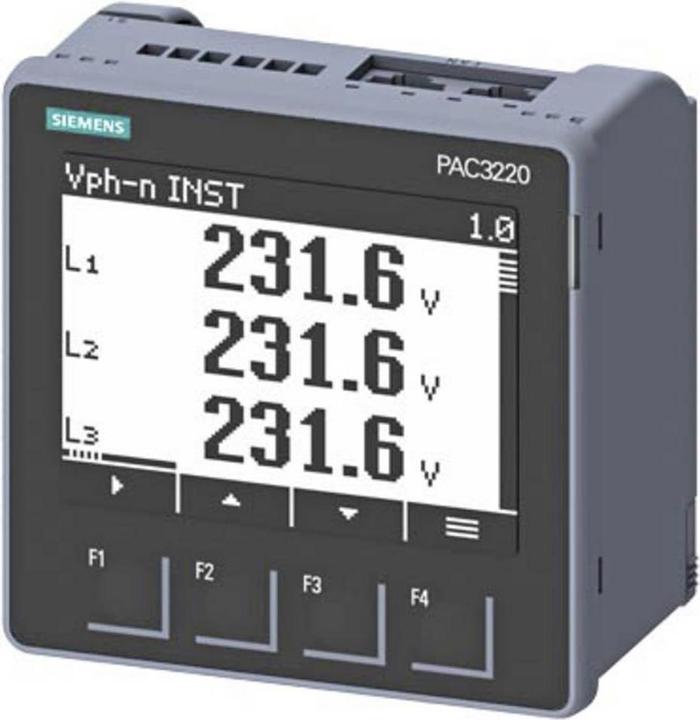

SENTRON PAC3220 LCD 96x96 mm Power Monitoring Device. Panel-mounted device for measuring electrical parameters. Protocol: Modbus TCP with graphical display. Rated voltage: 690/400V, 45-65Hz. Rated current: X/1A or X/5A AC. Auxiliary power: 24 - 60 V, -20/+10 % DC. Screw terminal connection.
The multifunction measuring device SENTRON 7KM PAC3220 precisely, reproducibly, and reliably captures all important electrical parameters for feed-in, electrical branches, or individual consumers. It provides comprehensive information about your electrical installation and energy distribution, as well as important measurement values for assessing the condition of the system.
Thanks to various communication options, the devices can be easily integrated into higher-level automation and energy management systems via Modbus TCP, PROFINET, PROFIBUS, and Modbus RTU. With additional modules, further digital inputs and outputs, analog inputs, neutral conductor direct measurement, or residual current measurement can be implemented.
The 7KM PAC measuring devices are available in various versions to suit the scope of your requirements. SENTRON PAC - specialists in measurement data acquisition.
measurement module | Amp, Volts, Watt |
Maximum current | 5 A |
Energy meter type | Multifunction measuring device |
Nominal voltage | 690 V |
Mounting type | Built-in installation |
Item number | 32020858 |
Manufacturer | Siemens |
Category | Energy monitors |
Manufacturer no. | 7KM32201BA011EA0 |
Release date | 24.10.2022 |
Colour | Black |
Exact colour description | Black, White |
Energy meter type | Multifunction measuring device |
Functionalities | Internet connection |
Mounting type | Built-in installation |
Mounting type | Screw fastening |
measurement module | Amp, Volts, Watt |
Maximum current | 5 A |
Nominal voltage | 690 V |
Display type | Digital |
Accuracy class | C |
Protection type (IP code) | IP20, IP65 |
Country of origin | Germany, Hungary |
Manufacturer commitment | RE100, SBTi |
Manufacturer compensation | According to RE100, the manufacturer Siemens fully compensates for its energy consumption, leading to a reduction in emissions. |
CO₂-Emission | |
Climate contribution |

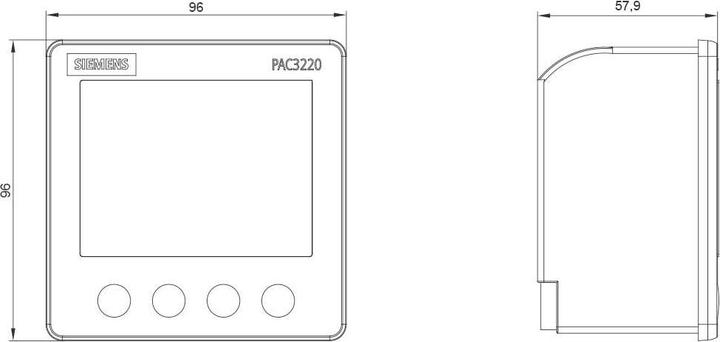

Height | 96 mm |
Length | 56 mm |
Width | 96 mm |
Weight | 325 g |
Length | 13 cm |
Width | 11 cm |
Height | 8 cm |
Weight | 472 g |
