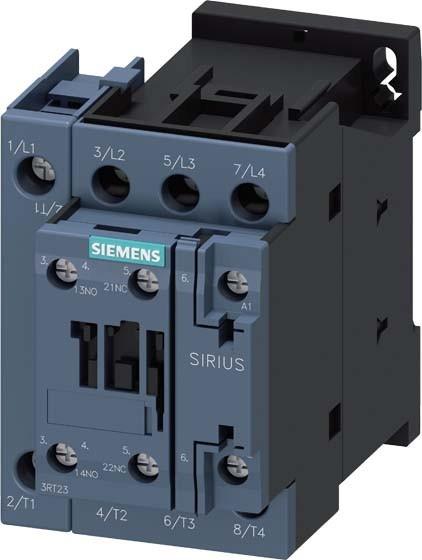

Siemens Power contactor 7.5kW 4S 230VAC 15.5A 3RT2325-1AP00

Siemens digital industrial contactor 3RT2325-1AP00

Manufacturer: Siemens Digital Industries
Designation: Contactor 22kW/400V 35A 230VAC
Type: 3RT2325-1AP00
Rated control supply voltage Us at AC 50 Hz: 230 V
Type of voltage for actuation: AC
Rated operational current Ie at AC-1, 400 V: 35 A
Rated operational current Ie at AC-3, 400 V: 15.5 A
Rated operational power at AC-3, 400 V: 7.5 kW
Rated operational current Ie at AC-4, 400 V: 15.5 A
Rated operational power at AC-4, 400 V: 7.5 kW
Suitable for series installation: Yes
Number of auxiliary contacts as make contacts: 1
Number of auxiliary contacts as break contacts: 1
Connection type main circuit: Screw connection
Number of make contacts as main contacts: 4

Further details:
Contactor, AC-1, 35A/400 V/40 °C, S0, 4-pole, AC 230V/50Hz, 1S+1Ö, screw connection. SIRIUS 3RT23 contactor for switching resistive loads. 3RT23 contactors are part of the SIRIUS modular system with optimally matched products. They offer high performance combined with compact design and high contact reliability. They can be combined in a variety of ways with other components in the load feeder. Many of the device combinations are factory-tested. The contactors offer the optimum connection to the control system for every application (parallel, via ASi or IO-Link). Integrated auxiliary switches reduce the complexity of your setup. The front connections allow easy wiring. The 3RT23 contactors are climate-proof and approved worldwide (e.g., IEC and UL/CSA). They are available in various sizes and in a wide power range in AC and DC actuation. In addition to screw connection technology, the units are also available with a spring-cage connection for fast, maintenance-free, and vibration-proof connection. The comprehensive range of accessories, such as auxiliary contacts and auxiliary releases, is standardized for all sizes. Simple, efficient, always up-to-date - the SIRIUS modular system.
EAN: 4011209834613.
