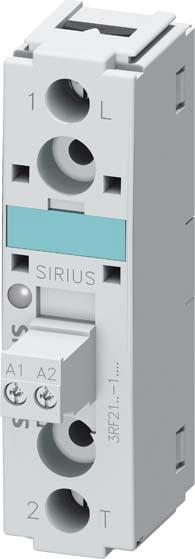

Siemens Power contactor 1S 15-24VDC REG 3RF2170-1CA04

Siemens Digital Industrial Semiconductor Relay 3RF2170-1CA04

Manufacturer: Siemens Digital Industrial
Description: Semiconductor relay 22.5 mm, 70 A
Type: 3RF2170-1CA04
Rated control supply voltage Us at DC: 15..24 V
Voltage type for actuation: DC
Operating voltage: 48..460 V
Rated operational current Ie at AC-1: 70 A
Rated operational current Ie at AC-51: 50 A
Number of phases: 1
Suitable for rail mounting: yes

Additional details:
Semiconductor relay, single-phase, 3RF2, width 22.5 mm, 70 A, 48-460 V / DC 24 V, screw connection, low noise. SIRIUS 3RF21 semiconductor relays for switching resistive and inductive loads, such as heaters or valves in a filling system. The devices switch without wear and silently, making them ideal for noise-sensitive areas like offices and hospitals. They are also extremely reliable at high switching frequencies. The compact design saves space on the cooling surface. Additionally, the semiconductor relays can be easily expanded for various applications by simply clicking on the standardized function modules 3RF29. The devices are globally certified (e.g., IEC and UL/CSA). The semiconductor relays are available as single-phase devices in two widths or as three-phase devices. They come in various power ratings and rated operating voltages. Designed for AC or DC actuation, they are available with screw, spring-loaded, or ring terminal connections. Accessories include not only the function modules 3RF29 but also control plugs and terminal covers. Simple, efficient, always up to date - the SIRIUS system modular concept.
EAN: 4011209717442.
