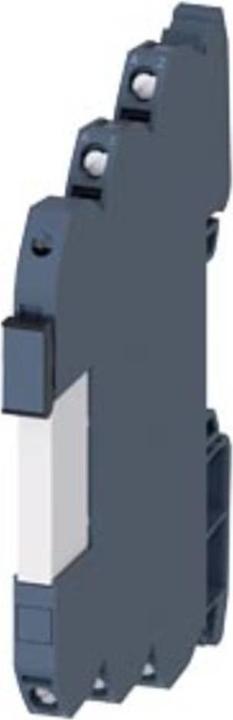

Siemens pluggable relay, 1 CO gold-plated 115V

Siemens Digital Industry Output Coupler 3RQ3118-1AE01

Manufacturer: Siemens Digital Industry
Designation: Output coupler with plug-in relay
Type: 3RQ3118-1AE01
Electrical connection type: Screw connection
With removable terminals: No
Voltage type for actuation: AC/DC
Drive, polarity: Polarity
Switching behavior of the drive: Monostable

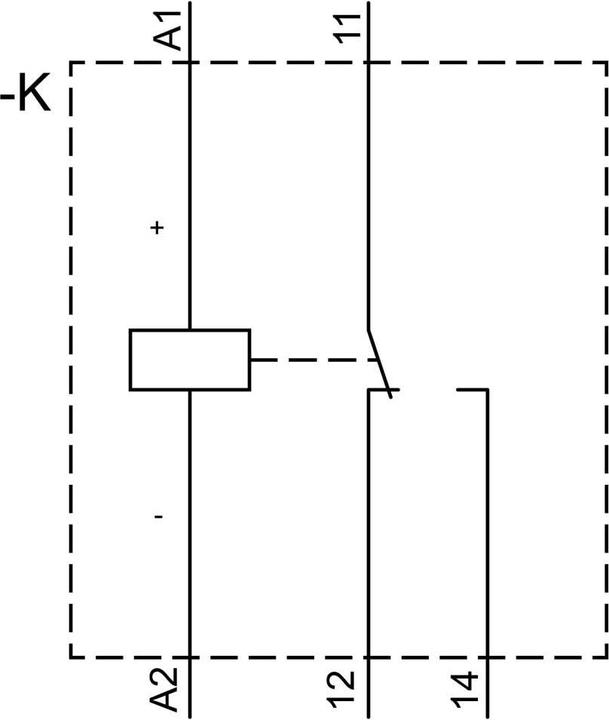

Number of contacts as changeover: 1
With forced-guided contacts: No
Type of switching contact: Single contact
Complete device with base: Yes
With LED indication: Yes
Protection class (IP): IP20
Width: 6.2 mm
Height: 93 mm
Depth: 76 mm

Further details: Output coupler with plug-in relay, 1 W, hard gold-plated, screw connection AC/DC 115 V, housing width 6.2 mm, thermal current 6 A. Coupling relay with plug-in relay SIRIUS 3RQ3 for galvanic isolation, amplification, and signal adaptation between control and peripherals. Very narrow and compact. Fast and error-free wiring due to the continuous bridging of all potentials. Several labeling areas for terminal and device identification are available. Available as coupling relay with relay output, with semiconductor output, or with plug-in relay, with various operating voltages and output currents, as well as with hard gold-plated contacts or manual-automatic switching. Uniform accessories for all device variants, such as connection combs, clip labels, or potential separation plates, simplify selection and inventory management. SIRIUS relays - a program for all cases.

EAN: 4047621000459.
